Two treatment functions
Filtered airflow and pulsed light address different parts of the handover: chamber air and directly exposed material surfaces.
PRODUCT GALLERYST

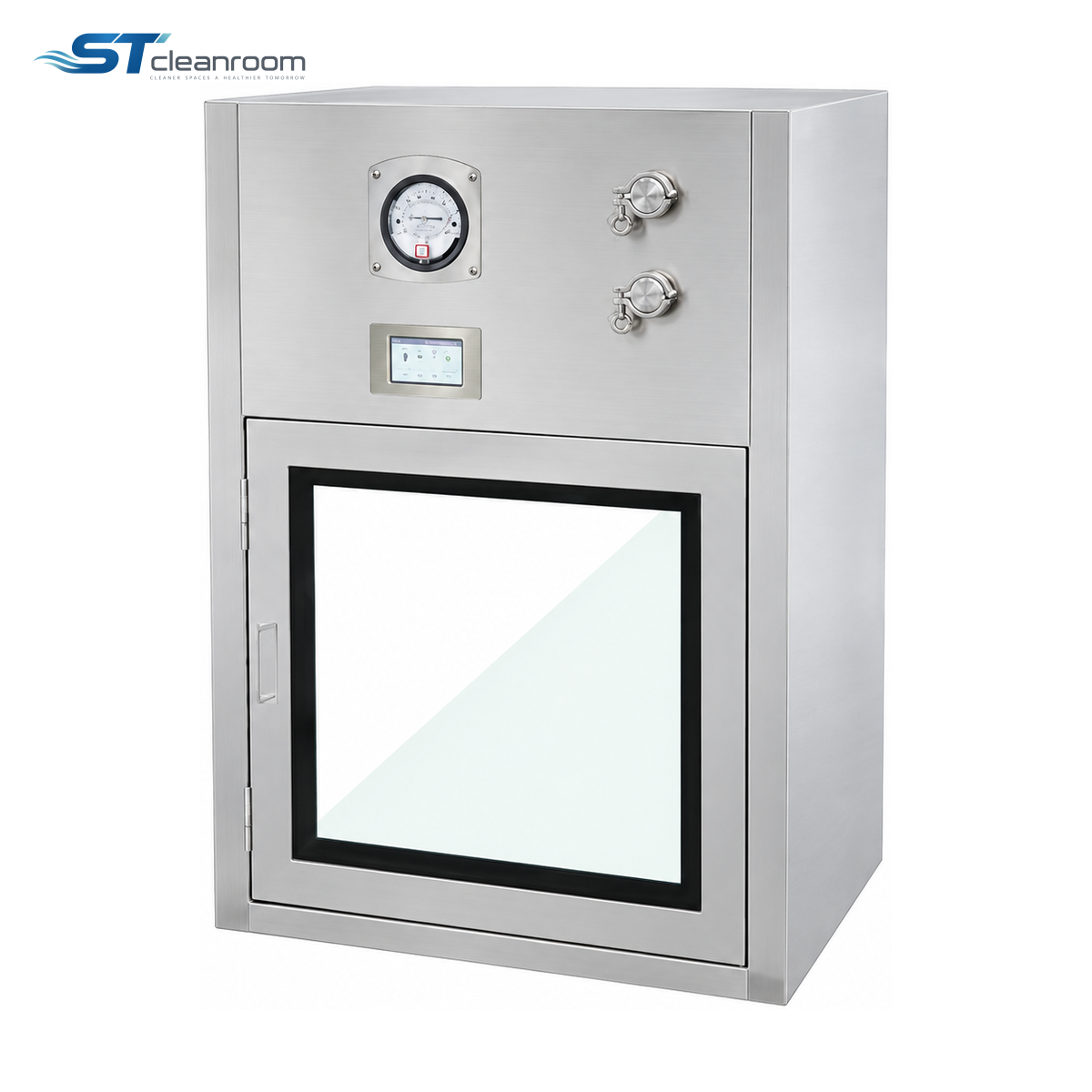

Product view
Cleanroom Equipment
Xenon Light Pass Box
Product specifications
| Brand | ST |
|---|---|
| Body and doors | Brushed 304 stainless steel |
| Door design | Recessed flush doors |
| Vision glazing | 5 mm CCC-certified tempered double glazing with black border |
| Chamber cleanliness | ISO 5 (Class 100) |
| Filter efficiency | ≥99.995% |
| Air velocity | 0.45 m/s ±20% |
| Power supply | 220 V, 50 Hz |
| Light source | High-energy pulsed xenon |
| Microbial reduction | ≥99% |
| Treatment timer | 0–99 min |
| Controls | Electromagnetic interlock; alarm; LCD display; self-cleaning airflow |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Xenon Light Pass Box combines pulsed xenon surface treatment with filtered chamber airflow for transferring suitable materials between rooms. The interlocked enclosure keeps loading and collection within a defined sequence while the material is treated at the partition.
Glazed flush doors allow staff to view the load, and the LCD display and timer support operation of the treatment cycle. Air cleaning addresses airborne particles in the chamber while the light acts on exposed compatible surfaces.
FEATURES AND BENEFITS
How it helps
Controlled door sequence
Electromagnetic interlocking keeps access coordinated during treatment and collection.
Flush door face
Recessed door construction reduces projections at the loading position and supports routine wiping.
APPLICATIONS
Where it is used
Controlled manufacturing transfer
Treat suitable containers or tools entering a clean production room.
Laboratory support partitions
Provide a dedicated material handover where the process calls for light treatment.
SELECTION GUIDANCE
Choosing the configuration
Arrange exposed surfaces
Keep items separated so the intended surfaces are illuminated; the loading pattern matters as well as timer duration.
Match the chamber to the item
Allow usable room around the load for handling and airflow rather than filling the entire chamber.
