Two identifiable positions
Assign upper and lower compartments to defined item groups or transfer stages so collection is easier to organize.
PRODUCT GALLERYST

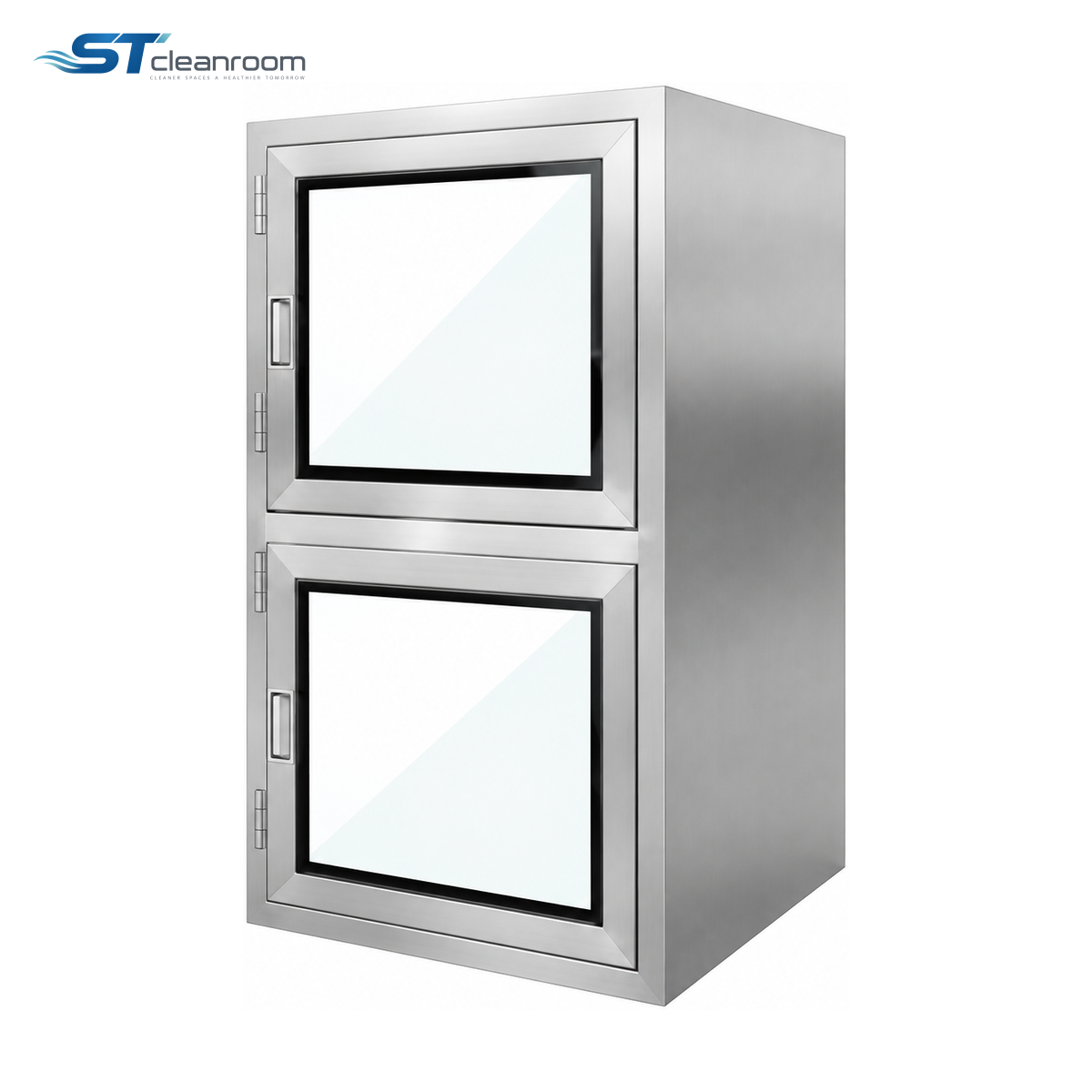

Product view
Cleanroom Equipment
Stacked Static Pass Box
Product specifications
Common specification options
| Brand | ST |
|---|---|
| Model | ST-PT31 |
| Material options | 304 / 316 stainless steel |
| Common chamber-size options (each, W × D × H) | 500 × 500 × 500 / 600 × 600 × 600 mm |
| Chamber arrangement | Two vertically stacked chambers |
| Air treatment | Static chambers |
| Door interlock | Electronic |
| Viewing provision | Glazed access doors |
| Mounting | Partition installation / floor-standing option |
Customization availableThe size of each chamber, overall height and wall interface can be customized.
Request a quotation
Specify the quantity and configuration in your inquiry.
Stacked Static Pass Box provides two separate transfer compartments above one another. It gives teams distinct places for waiting items while using one narrow wall bay, which helps prevent tools, containers or different batches being placed together.
The chambers provide enclosed handover without active air cleaning. Glazed doors show occupancy and electronic interlocking coordinates access, reducing unnecessary door opening to check whether material has arrived.
FEATURES AND BENEFITS
How it helps
Less wall width
Vertical stacking provides two handover spaces where adjacent side-by-side hatches would occupy too much partition.
APPLICATIONS
Where it is used
Cleanroom support partitions
Hand over prepared or packaged items whose process needs enclosed transfer rather than a filtered holding chamber.
SELECTION GUIDANCE
Choosing the configuration
Choose each compartment separately
Common 500 or 600 mm cube options refer to each chamber, not the combined cabinet.
Set practical working heights
Place frequently handled items within comfortable reach; leave enough lower clearance for loading and cleaning.
