Coverage over the exposed task
The working footprint can follow a filling or assembly zone so clean air is supplied where materials are uncovered.
PRODUCT GALLERYST

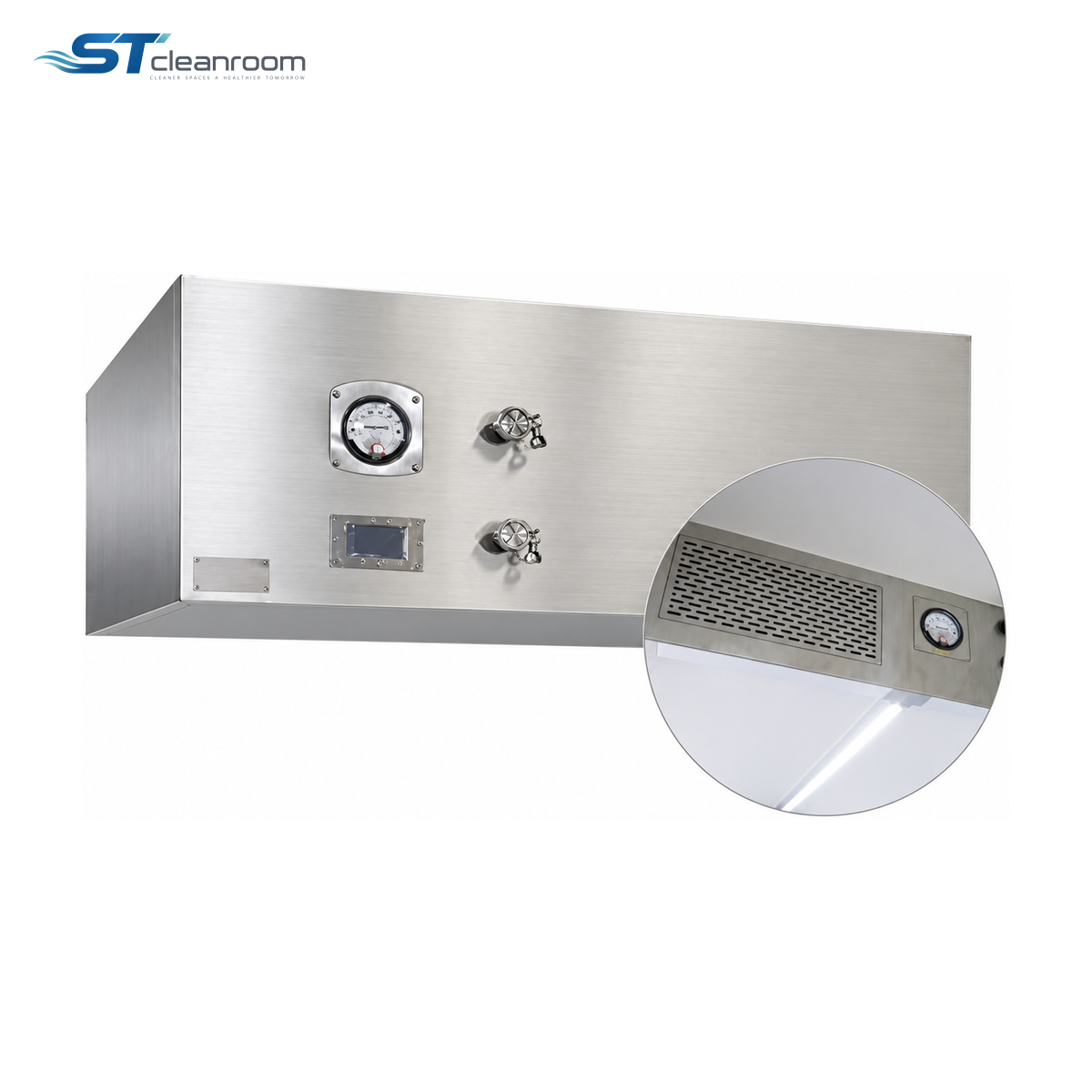

Product view
Cleanroom Equipment
Laminar Flow Canopy
Product specifications
| Brand | ST |
|---|---|
| Body | 304 stainless steel; 316L option |
| Surface | Brushed or electropolished options |
| Cleanliness | Grade A; ISO 5 (Class 100) |
| Filter efficiency | ≥99.995% |
| Air velocity | 0.45 m/s ±20% |
| Noise | ≤65 dB |
| Air distribution | Diffuser membrane or perforated plate |
| Power supply | 220 V, 50 Hz |
| UV intensity | ≥75 μW/m² |
| Illuminance | ≥300 lx |
| Mounting | Suspended or floor-supported |
| Controls | Touchscreen; fan, light and UV controls; password access |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laminar Flow Canopy directs filtered downflow over an exposed process position, helping reduce particle deposition while products are filled, inspected or assembled. It focuses protection on the critical work area without requiring the whole workstation to be enclosed as a separate room.
A diffuser membrane or perforated plate distributes the air across the working footprint. Suspended and floor-supported arrangements provide different ways to integrate the canopy around machinery and overhead services.
FEATURES AND BENEFITS
How it helps
Mounting around equipment
Suspension keeps the floor clear; a supported arrangement provides an alternative where overhead attachment is unsuitable.
Local operating controls
The touchscreen groups fan, light and UV controls with password access for the operating settings.
APPLICATIONS
Where it is used
Filling and assembly lines
Supply downflow over exposed product handling within the surrounding controlled production environment.
Clean preparation stations
Protect suitable materials during open preparation without treating the canopy as a containment enclosure.
SELECTION GUIDANCE
Choosing the configuration
Size the protected footprint
Include the exposed product, tools and operator access, then account for equipment that may obstruct the downflow.
Reserve maintenance access
Plan room above or beside the canopy for filter and service work.
