Wetting before gown removal
Moistening exposed garment dust addresses the release that can occur when sleeves, folds and fastenings are disturbed.
PRODUCT GALLERYST

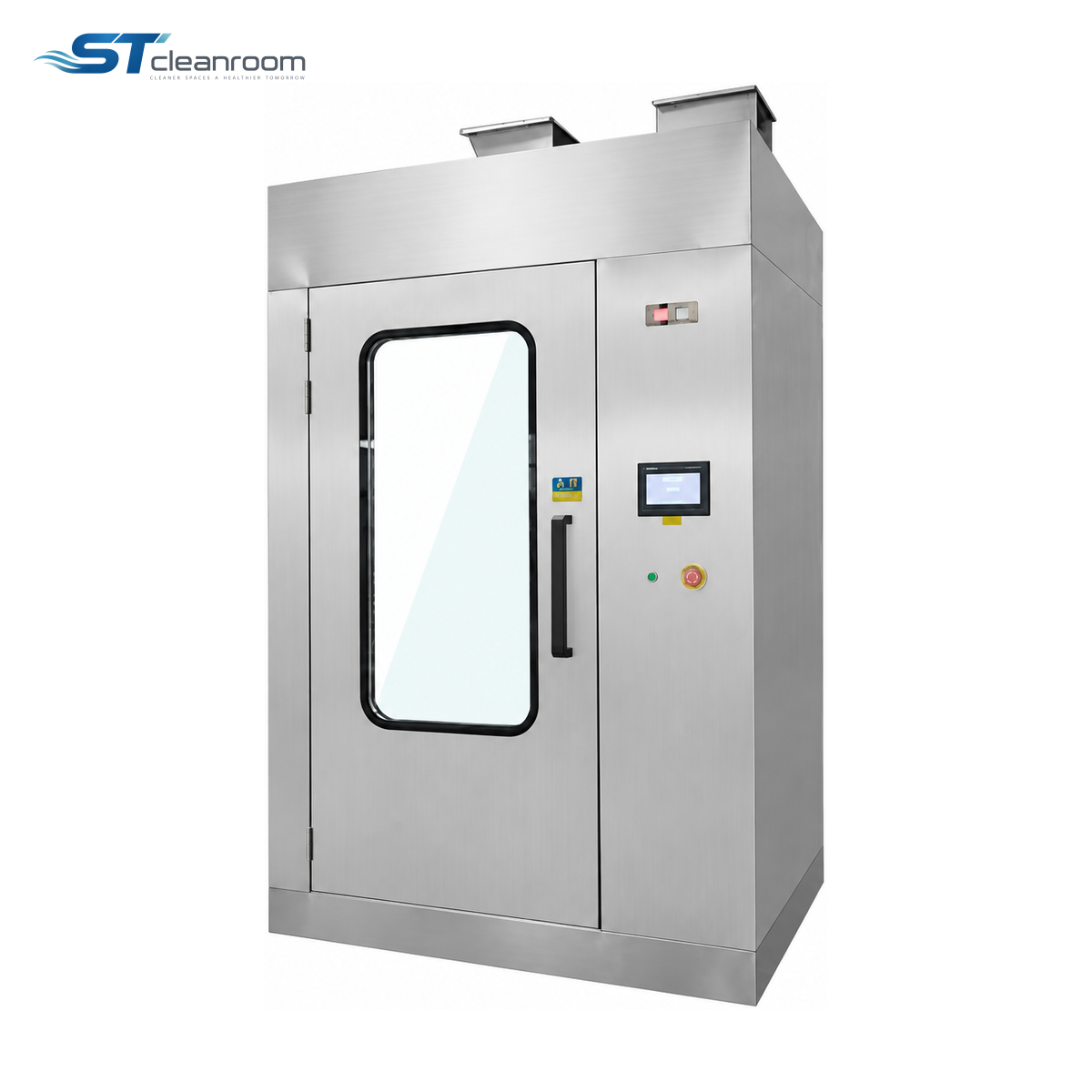

Product view
Cleanroom Equipment
Fog Shower
Product specifications
| Brand | ST |
|---|---|
| Body | Brushed 304 stainless steel |
| Vision glazing | 5 mm CCC-certified tempered glass; double-layer clear rounded-corner construction |
| Lighting | Recessed LED |
| Filter efficiency | ≥99.995% |
| Mist droplet size | ≤5 μm |
| Water supply pressure | 1–2 bar |
| Water temperature | Ambient |
| Misting time | 1–999 s, adjustable |
| Power supply | 220 V, 50 Hz |
| Controls | PLC; door interlock; infrared activation; alarms; delayed lighting shutoff |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Fog Shower dampens loose dust on protective garments before personnel remove them. The misting step helps limit the amount of settled powder released back into the changing area as the clothing is handled.
Fine droplets are applied within an enclosed passage using infrared activation and an interlocked door sequence. The adjustable misting duration lets the wetting step fit the established exit procedure.
FEATURES AND BENEFITS
How it helps
Coordinated passage
The PLC, entry sensing and door interlock organize the shower step before the operator moves to changing.
Accessible enclosure
Stainless steel panels and recessed lighting provide surfaces that can be cleaned after the process.
APPLICATIONS
Where it is used
Pharmaceutical gowning exits
Add garment wetting where the material-handling procedure requires it before doffing.
Powder-processing changing areas
Use for compatible powders and protective clothing under a defined cleaning and exit routine.
SELECTION GUIDANCE
Choosing the configuration
Fit the garment procedure
Misting duration and garment wetting need to suit the powder, clothing and subsequent removal process.
Provide the utilities
The installation uses ambient water at the listed supply pressure; locate connections and cleaning access before enclosing the chamber.
