Size 1
The 600 mm cube enclosure provides a 465 × 510 × 535 mm internal space, fitting a smaller transfer position in the partition.
PRODUCT GALLERYST

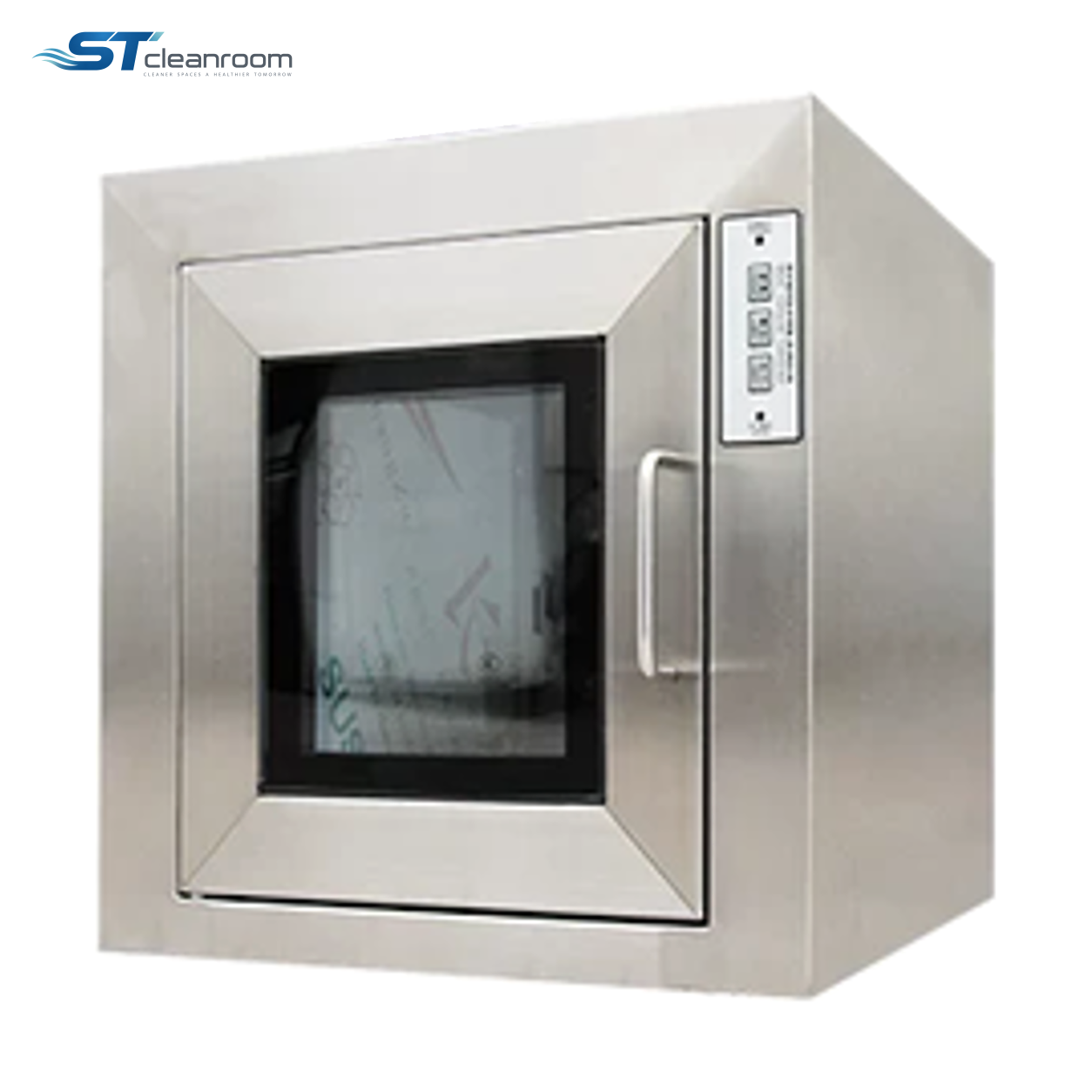

Product view
Cleanroom Equipment
Electronic Interlock Pass Box
Product specifications
| Specification | Size 1 | Size 2 |
|---|---|---|
| Brand | ST | |
| Model | ST-PT6 | |
| Material | 304 / 316 stainless steel | |
| External size (W × D × H, mm) | 600 × 600 × 600 | 735 × 690 × 665 |
| Internal size (W × D × H, mm) | 465 × 510 × 535 | 600 × 600 × 600 |
| Standard functions | Electronic interlock; UV disinfection | |
| Power | 16 W | |
| Power supply | 220 V / 50 Hz | |
| Weight | 20 kg | |
| Size customization | Custom dimensions available | |
Customization availableChamber dimensions can be customized to the items being transferred and the partition installation.
Request a quotation
Specify the quantity and configuration in your inquiry.
Electronic Interlock Pass Box transfers supplies between adjoining rooms while keeping one door closed, helping limit room-to-room air exchange during handover. Electrically controlled locks prevent staff on opposite sides from opening both doors together, so small deliveries can be received without using the main personnel entrance.
UV disinfection treats surfaces exposed to the lamp inside the chamber, and the stainless steel interior can be wiped between transfers. The viewing window lets the receiving operator check the load before opening the door.
MODEL DIFFERENCES
Which configuration fits the task
Size 2
The 735 × 690 × 665 mm enclosure provides a 600 mm cube internal space, accommodating a larger item envelope while retaining the electronic access sequence.
PRACTICAL BENEFITS
Coordinate access from opposite rooms
Lock the opposite side
Electronic door locking keeps one side closed when staff load or collect items, avoiding a direct open path through the partition.
Check before collecting
The window allows a view of the chamber so the receiving operator can see the staged item without first opening the door.
Treat exposed surfaces
UV disinfection and routine chamber wiping support the material-transfer cleaning procedure.
APPLICATION ENVIRONMENTS
Small deliveries to controlled work rooms
Component support rooms
Hand prepared component containers into an assembly room while supply staff remain on the preparation side.
Packing supply rooms
Receive small batches of packaging supplies through the wall rather than repeatedly opening the personnel entrance.
Inspection and preparation rooms
Exchange closed containers and tools between work rooms where the transfer procedure requires one-door-at-a-time access.
SELECTION GUIDE
Fit the box to the item and wall opening
Usable load space
Choose the internal chamber size around the complete container, including clearance for lifting it in and out.
Installation and controls
Allow for the external enclosure, support and door access, and arrange the electrical connection and access to controls at the partition.
COMMON QUESTIONS
Positioning items for UV treatment
How does loading affect UV disinfection?
Surfaces need exposure to the lamp. Arrange containers with a clear line of sight to the light, since stacked items and opaque packaging can shade the areas needing treatment.
