Controlled access
The electronic interlock coordinates door release as part of the agreed transfer sequence.
PRODUCT GALLERYST
Product view
Cleanroom Equipment

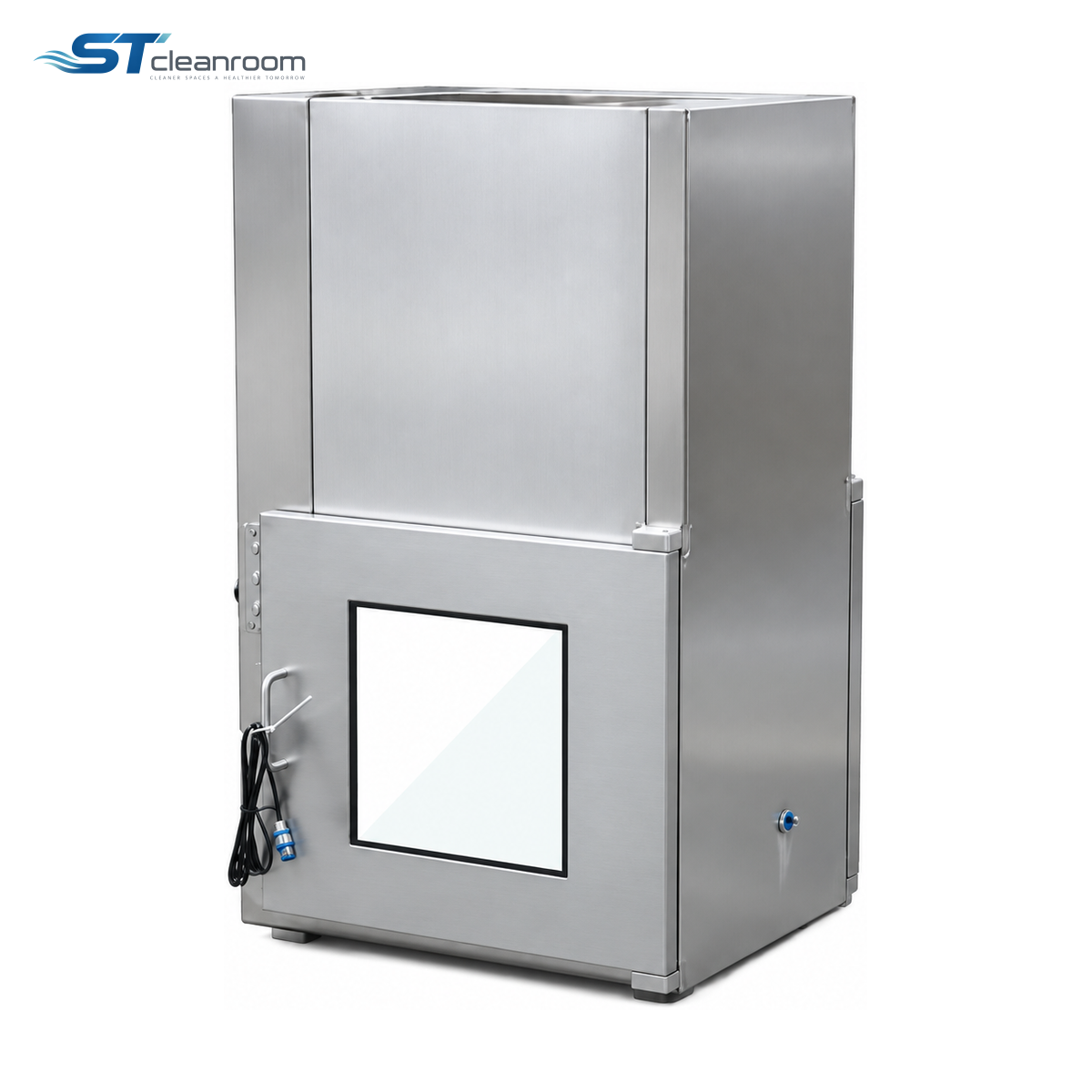

External-Hinged Electronic Dynamic Pass Box
Product specifications
Common specification options
| Brand | ST |
|---|---|
| Model | ST-PT34 |
| Material options | 304 / 316 stainless steel |
| Common chamber-size options (W × D × H) | 500 × 500 × 500 / 600 × 600 × 600 / 800 × 800 × 800 mm |
| Door configuration | Externally hinged glazed doors |
| Door interlock | Electronic |
| Air treatment | Filtered chamber airflow |
| Filter configuration option | Prefilter and HEPA final filter |
| Installation | Partition installation |
Customization availableDimensions and configuration can be customized to your project requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
External-Hinged Electronic Dynamic Pass Box uses electrically controlled interlocking and filtered airflow for material transfer through a partition. It provides a defined place to load, hold and collect containers without repeatedly opening the room entrance.
Electronic locks coordinate the access doors, while the transparent panels show whether a load is waiting. The chamber airflow removes airborne particles from the transfer space between handling operations.
FEATURES AND BENEFITS
How it helps
Filtered holding space
Air treatment helps reduce airborne particle exposure while prepared items wait inside the chamber.
APPLICATIONS
Where it is used
Laboratory preparation rooms
Hand over closed sample containers, supplies and compatible tools between adjoining work areas.
SELECTION GUIDANCE
Choosing the configuration
Match chamber size to handling
Common 500, 600 and 800 mm cube options provide different clear spaces; choose for the container plus hand access and airflow clearance.
Coordinate the operating sequence
Door release and the receiving routine should suit the transfer process rather than adding unnecessary handling.
