Upper service enclosure
Grouping the air-treatment assembly above the chamber keeps the loading face focused on material handling.
PRODUCT GALLERYST

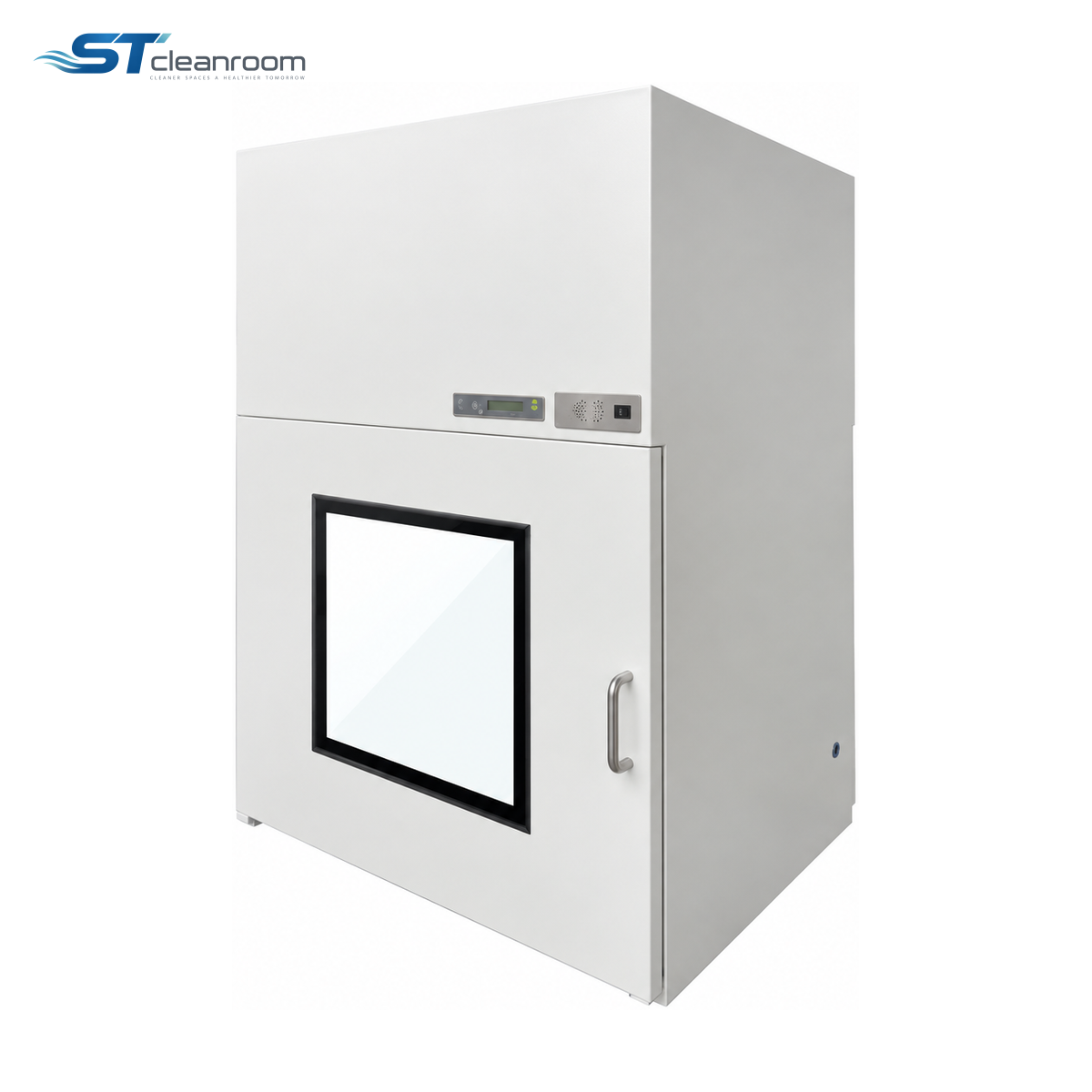

Product view
Cleanroom Equipment
Extended-Top Dynamic Pass Box
Product specifications
Common specification options
| Brand | ST |
|---|---|
| Model | ST-PT26 |
| Material options | 304 / 316 stainless steel |
| Common chamber-size options (W × D × H) | 500 × 500 × 500 / 600 × 600 × 600 / 800 × 800 × 800 mm |
| Door configuration | Glazed access doors |
| Door interlock | Electronic |
| Air treatment | Filtered chamber airflow |
| Filter configuration option | Prefilter and HEPA final filter |
| Installation | Partition installation |
Customization availableDimensions and configuration can be customized to your project requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Extended-Top Dynamic Pass Box locates its air-handling assembly above the material chamber. The raised upper enclosure separates the filtration equipment from the loading space, providing an air-treated handover without occupying additional side access at the work opening.
Prepared containers can wait in the filtered chamber while the receiving operator checks them through the glazed door. Electronic interlocking coordinates access from each side of the partition.
FEATURES AND BENEFITS
How it helps
Filtered transfer position
Air cleaning within the chamber helps reduce the particles present during loading and waiting.
APPLICATIONS
Where it is used
Partition hatches with overhead space
Use where a production wall has room above the transfer opening for the air-handling enclosure.
SELECTION GUIDANCE
Choosing the configuration
Separate usable and overall size
The common 500, 600 or 800 mm cube chamber choices exclude the extended top and installation envelope.
Leave room for maintenance
The final wall and ceiling layout should preserve access to the upper components.
