Keep item groups apart
Use the upper and lower spaces to stage separate deliveries instead of crowding tools and containers into one chamber.
PRODUCT GALLERYST

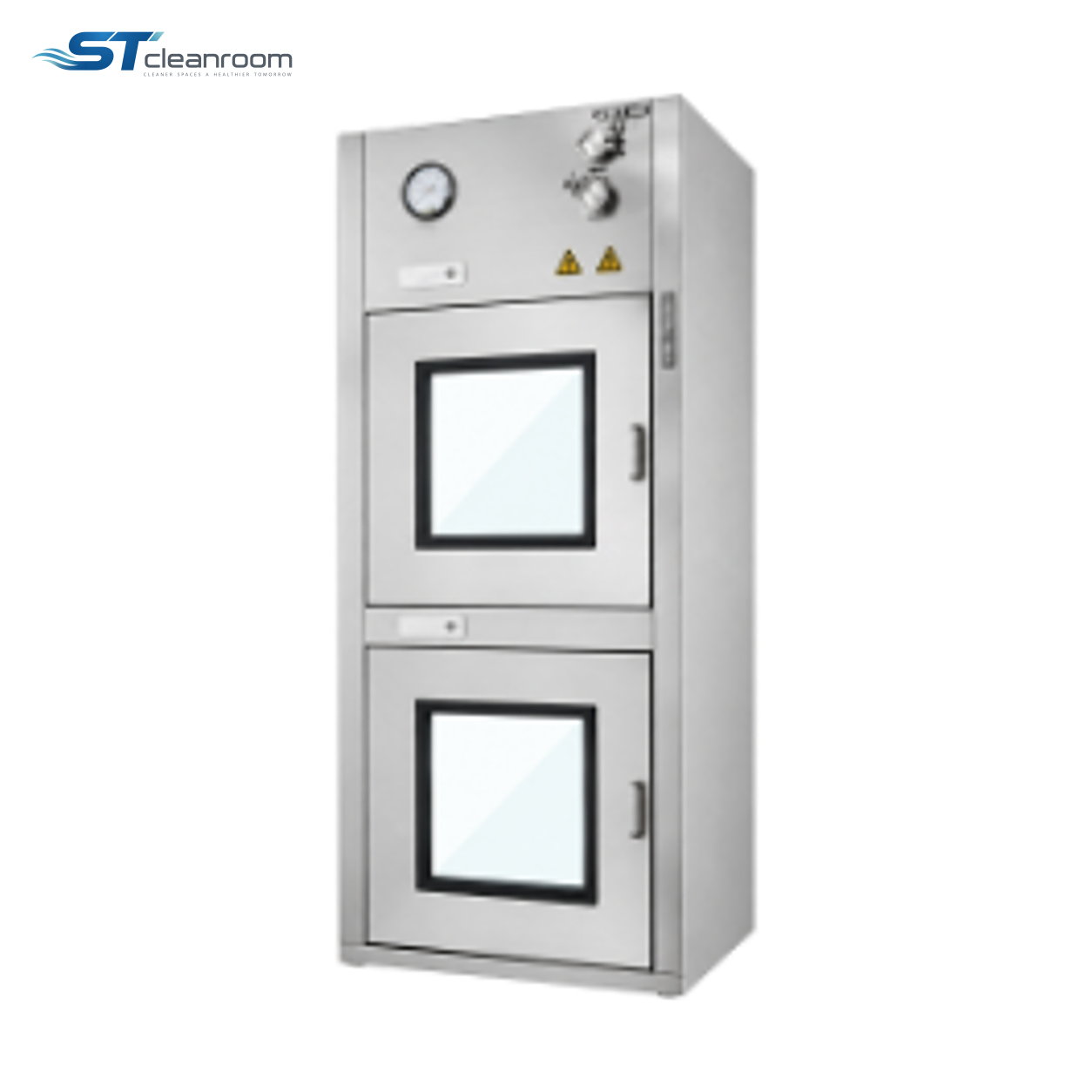

Product view
Cleanroom Equipment
Dynamic Double-Layer Dust-Removal Pass Box
Product specifications
| Brand | ST |
|---|---|
| Model | ST-PT8 |
| Material | 304 / 316 stainless steel |
| External size (W × D × H) | 800 × 680 × 1900 mm |
| Internal size (W × D × H) | 600 × 600 × 600 mm × 2 chambers |
| Filtration efficiency | 99.995% at 0.5 µm |
| Air velocity | 0.45 m/s |
| Standard functions | Electronic interlock; dynamic dust removal; UV disinfection |
| Power | 0.5 kW |
| Power supply | 220 V / 50 Hz |
| Weight | 85 kg |
| Size customization | Custom dimensions available |
Specifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Dynamic Double-Layer Dust-Removal Pass Box keeps prepared tools and closed containers under filtered airflow during handover between controlled rooms. Its upper and lower chambers provide separate places to stage two groups of items, helping staff keep deliveries organized while limiting airborne dust around the waiting loads.
The stacked layout provides two transfer spaces within one cabinet width where partition space is limited. Electronic interlocking controls access from opposite sides; stainless steel surfaces allow regular wiping, and UV disinfection treats surfaces exposed to the lamp.
PRACTICAL BENEFITS
Organize material waiting for collection
Keep handover visible
Separate viewing windows let staff check which chamber contains the expected items before opening a door.
APPLICATION ENVIRONMENTS
Rooms receiving frequent small deliveries
Pharmaceutical preparation rooms
Stage separate groups of cleaned tools and closed containers at the partition before collection for preparation work.
Electronics assembly rooms
Keep prepared component containers and assembly tools in separate chambers where the room procedure requires filtered material handover.
Food processing and packing rooms
Pass sealed ingredients and cleaned utensils from support areas, with two spaces to organize loads awaiting collection.
Research preparation rooms
Hand compatible supplies and closed sample containers through the partition without carrying each delivery through the personnel entrance.
SELECTION GUIDE
Match both chamber levels to the work
Loading height and clearance
Position both chambers within comfortable reach for the intended loads, leaving room around containers and chamber air openings.
Partition support and service access
Allow for the full cabinet height, supporting structure, door movement and access to the filtration components.
COMMON QUESTIONS
Using the two transfer spaces
How can the two chambers be assigned?
Assign a chamber to each item group under the room transfer procedure and identify loads before collection. Clean container exteriors before loading and keep powders closed.
