Treatment matched to the task
The upper compartment provides filtered airflow; the lower compartment provides static transfer without assigning the same air-treatment routine to every load.
PRODUCT GALLERYST

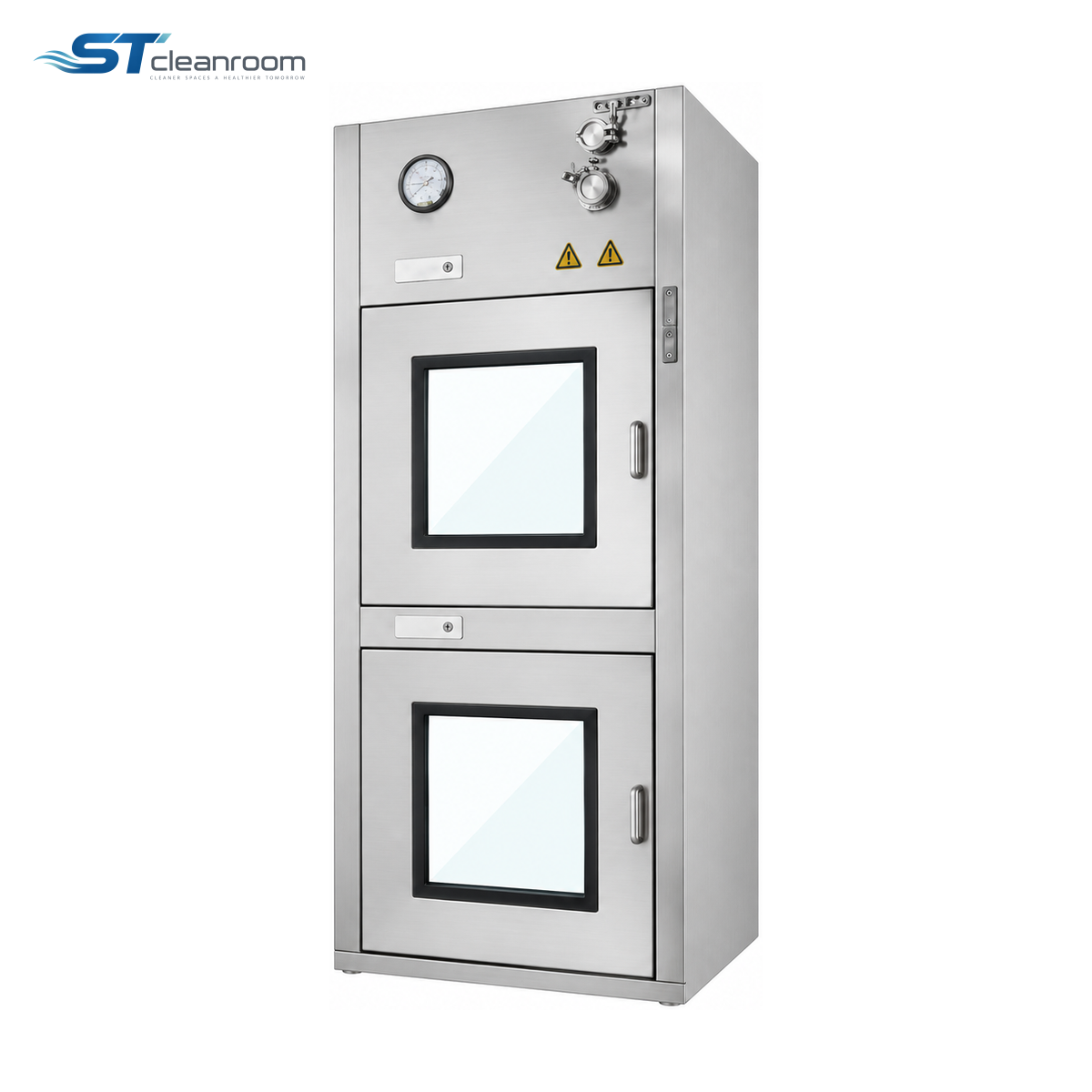

Product view
Cleanroom Equipment
Combined Dynamic and Static Pass Box
Product specifications
Common specification options
| Brand | ST |
|---|---|
| Model | ST-PT30 |
| Material options | 304 / 316 stainless steel |
| Common chamber-size options (each, W × D × H) | 500 × 500 × 500 / 600 × 600 × 600 mm |
| Chamber arrangement | Two vertically stacked chambers |
| Air treatment | Upper filtered chamber; lower static chamber |
| Door interlock | Electronic |
| Viewing provision | Glazed access doors |
| Mounting | Partition installation / floor-standing option |
Customization availableThe size of each chamber, overall height and wall interface can be customized.
Request a quotation
Specify the quantity and configuration in your inquiry.
Combined Dynamic and Static Pass Box pairs an upper filtered chamber with a lower passive transfer chamber. It lets one wall location serve materials that need filtered holding and other prepared items that only need an enclosed handover.
Keeping these tasks in separate compartments makes their intended use visible to staff. Electronic interlocking coordinates access, while glazed doors help operators see which chamber is occupied.
FEATURES AND BENEFITS
How it helps
Separate staging
Two levels keep items with different handling routines from sharing one waiting space.
APPLICATIONS
Where it is used
Mixed production support routes
Transfer cleaned tools through the filtered chamber and compatible packaged supplies through the static chamber under the site's material procedure.
SELECTION GUIDANCE
Choosing the configuration
Define the two routes
Assign materials and collection responsibilities to each chamber before installation.
Compare clear dimensions
The listed 500 or 600 mm cube options are per chamber; size the upper and lower compartments around their respective loads.
