20%–75% open area
Multiple fixed opening ratios allow different panel capacities to be placed across the room.
PRODUCT GALLERYST

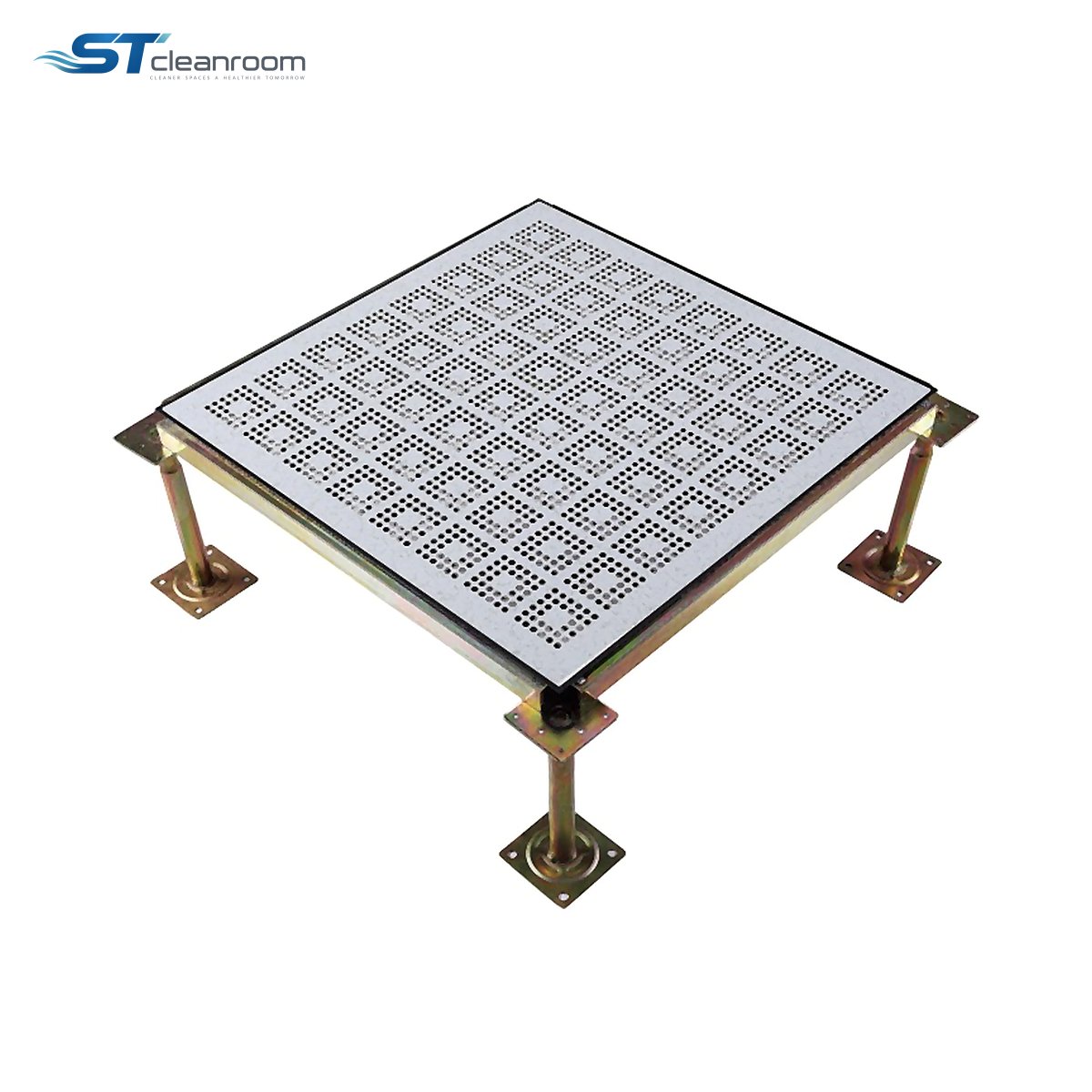

Product view
Cleanroom Flooring Systems
Steel Perforated Airflow Raised Floor Panel
Product specifications
| Brand | ST |
|---|---|
| Product type | Perforated steel raised-floor panel |
| Panel dimensions | 600 × 600 mm |
| Panel material | Steel |
| Open-area range | 20%–75% |
| Airflow regulator | Optional; adjustable from 0% to 75% |
| Surface options | Conductive vinyl/PVC or anti-static HPL |
| Installation | Stringer-supported raised-floor system |
| System compatibility | Steel, wood-core and calcium-sulphate raised-floor panels |
| Customisation | Open area, surface finish, regulator and system interface |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Steel Perforated Airflow Raised Floor Panel replaces selected solid floor panels to move air from the underfloor plenum into equipment or work zones. Open-area options from 20% to 75% let the fixed panel capacity be matched to different cooling or ventilation demands.
An optional surface-accessible regulator adjusts delivery from closed to 75%. The 600 × 600 mm panel can be coordinated with steel, wood-core and calcium-sulphate raised-floor systems.
UNDERFLOOR AIR DISTRIBUTION
Deliver air near the load instead of opening the whole floor
Accessible airflow control
The optional regulator can be adjusted from the panel surface to balance delivery as equipment heat loads change.
Mixed-system compatibility
The panel can be integrated with steel, wood-core or calcium-sulphate floor modules instead of requiring an all-new floor type.
APPLICATION ENVIRONMENTS
For technical rooms with an underfloor air plenum
Equipment and computer rooms
Delivers conditioned air close to cabinets and other concentrated heat loads above the raised floor.
Communication and switch rooms
Adds adjustable air outlets where equipment density varies across the floor plan.
Clean technical areas
Can be used in a planned cleanroom raised-floor system when the steel finish, joints, cleaning method and airflow design meet the room requirements.
Retrofit airflow zones
Replaces selected compatible solid panels to add local air delivery without rebuilding the complete floor grid.
AIRFLOW INTEGRATION
Match the panel to the plenum and adjacent floor
Calculate the required delivery
Choose the fixed open area and regulator setting from the available plenum pressure and airflow needed at each location.
Confirm the floor interface
Check panel depth, edge support, stringer layout and finished height against the existing raised-floor system.
Coordinate static control
Select conductive vinyl or anti-static HPL with the room's bonding, grounding, footwear and maintenance plan.
