Individual steel panels
600 × 600 × 30 mm, 600 × 600 × 35 mm, or 600 × 600 mm ceramic-faced panels.
PRODUCT GALLERYST

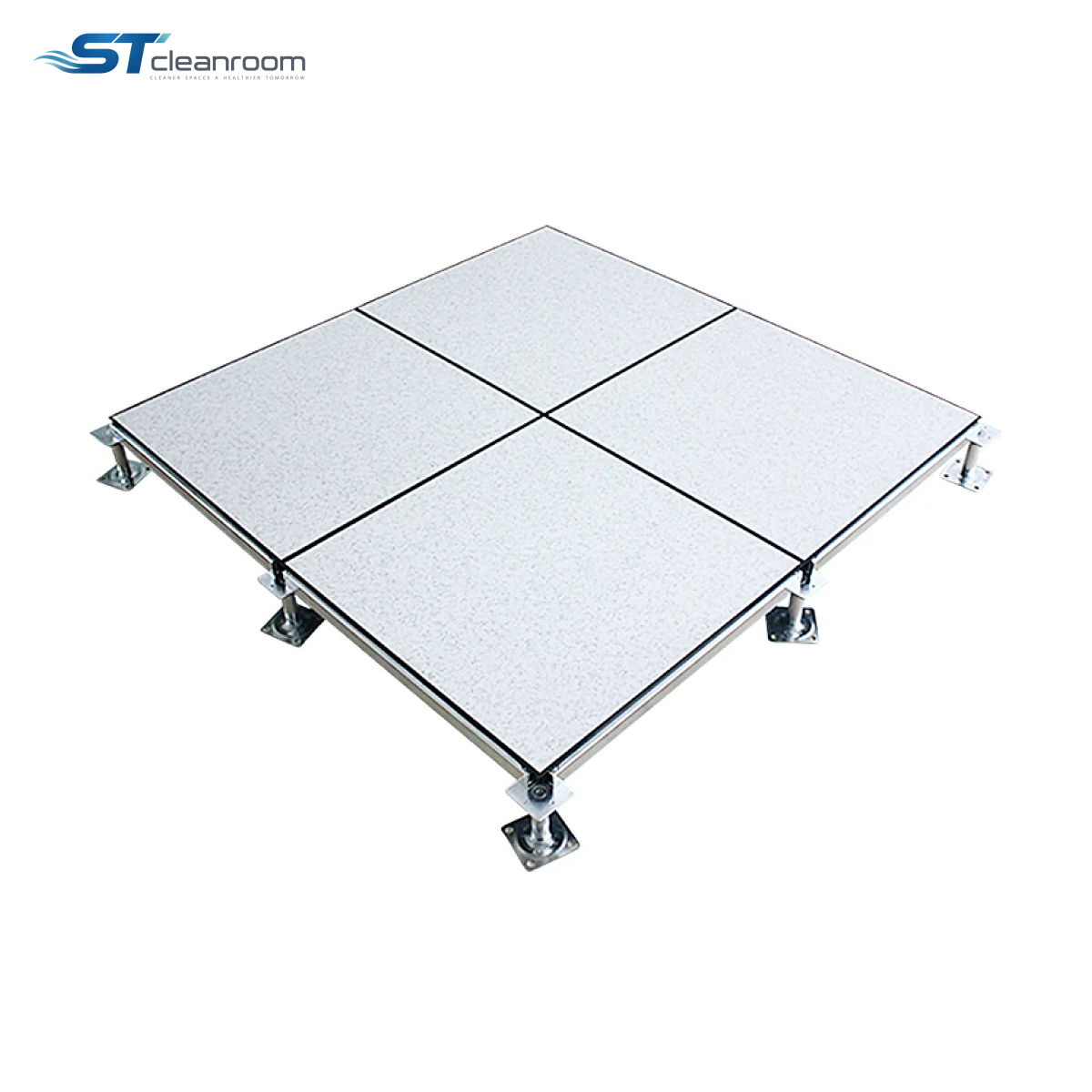

Product view
Cleanroom Flooring Systems
Anti-Static Steel Raised Access Floor
Product specifications
| Brand | ST |
|---|---|
| System | Removable panels on adjustable steel pedestals and stringers |
| Steel-panel construction | Cold-rolled steel top and bottom sheets with high-strength foamed-cement infill |
| Underside | Formed reinforcing dimples |
| Surface options | HPL, PVC or ceramic tile finish |
| Static-control features | Anti-static finish and conductive PVC edge strips |
| Surface properties | Wear resistance, slip resistance, corrosion resistance and easy cleaning |
| Formaldehyde | Formaldehyde-free |
| Panel joints | Closely fitted edges; bonded facing without exposed adhesive strips |
| National-standard versions: load capacity | Over 1 tonne |
| National-standard versions: fire grade | Grade A |
| Subfloor | Installation over a concrete base |
| Customisation | Finished floor height, perimeter cuts and project layout |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Anti-Static Steel Raised Access Floor creates a space for power and data cabling beneath removable panels. Adjustable pedestals and stringers support the working surface, so selected panels can be lifted for cable inspection, maintenance or layout changes without breaking up the floor.
Steel skins enclose a high-strength foamed-cement core, with a formed underside that stiffens the panel. Anti-static surface options and conductive PVC edge strips support static control when the floor is installed with the appropriate bonding and grounding system.
MODELS AND DIMENSIONS
30 mm and 35 mm panel specifications
| Parameter | 30 mm panel | 35 mm panel |
|---|---|---|
| Panel dimensions | 600 × 600 × 30 | 600 × 600 × 35 |
| Facing thickness | 0.7 mm HPL or 1.0 mm PVC | 0.7 mm HPL or 1.0 mm PVC |
| Steel material | SPCC cold-rolled steel | SPCC cold-rolled steel |
| Core | High-strength foamed cement | High-strength foamed cement |
| Steel sheet thickness | Top: 0.5 mm; bottom: 0.4 mm | Top: 0.5 mm; bottom: 0.4 mm |
| Panel weight | 12 kg | 13 kg |
| Single-panel load | 200 kg | 270 kg |
| Uniformly distributed load | 600 kg | 800 kg |
| Pedestal allowance | 3.3/m² | 3.3/m² |
| Stringer allowance | 5.2/m² | 5.2/m² |
| Screw allowance | 10.4/m² | 10.4/m² |
| Warranty | 1 year | 1 year |
| Finished floor height | 100–300 mm; customisable | 100–300 mm; customisable |
National-standard, ceramic-faced, OA cable-management and calcium-sulphate options are listed separately below.
ORDERING OPTIONS
Panel-only and complete floor options
Project floor sets
600 × 600 × 30 mm, 600 × 600 × 35 mm, or 600 × 600 mm ceramic-faced options, ordered per m² with support components.
National-standard floor sets
600 × 600 × 35 mm, 600 × 600 × 35 mm borderless, or 600 × 600 mm ceramic-faced options, ordered per m² with support components.
OA cable-management floors
500 × 500 × 28 mm or 600 × 600 × 33 mm options, ordered per m² with support components.
Calcium-sulphate floor option
A separate core-construction option for project selection.
ACCESS AND SUPPORT
A floor that can adapt to equipment changes
Lift-out access
Individual panels can be removed and refitted to reach services below, simplifying maintenance and cable alterations.
Adjustable support height
Pedestals establish the finished level and service space, while stringers support the panel edges.
Reinforced steel construction
The formed steel underside and cement-filled core work together to stiffen the panel under load.
APPLICATION ENVIRONMENTS
For rooms with changing cable and equipment layouts
Computer and equipment rooms
Route power and data services below the floor while retaining access for installation and maintenance.
Control rooms
Keep cabling for consoles and monitoring equipment beneath a removable working floor.
Electronics workshops
Combine service access with an anti-static surface in work areas using a coordinated grounding and personnel static-control system.
Offices and commercial buildings
Allow workstation wiring to be accessed and rearranged as desks, partitions and occupancy change.
SYSTEM SELECTION
Match the complete floor to its working load
Equipment and traffic loads
Choose the panel grade and support system for equipment contact points, distributed loads and movement routes.
Height and perimeter details
Plan the service space, thresholds and cut panels together; support cut edges so the finished floor remains stable.
Finish and electrical continuity
Select the facing for traffic and cleaning needs, and coordinate conductive edges, metal supports and earth bonding with the room's static-control design.
