Controlled path to ground
The flooring works with the adhesive and grounding connections to reduce charge accumulation around static-sensitive work.
PRODUCT GALLERYST

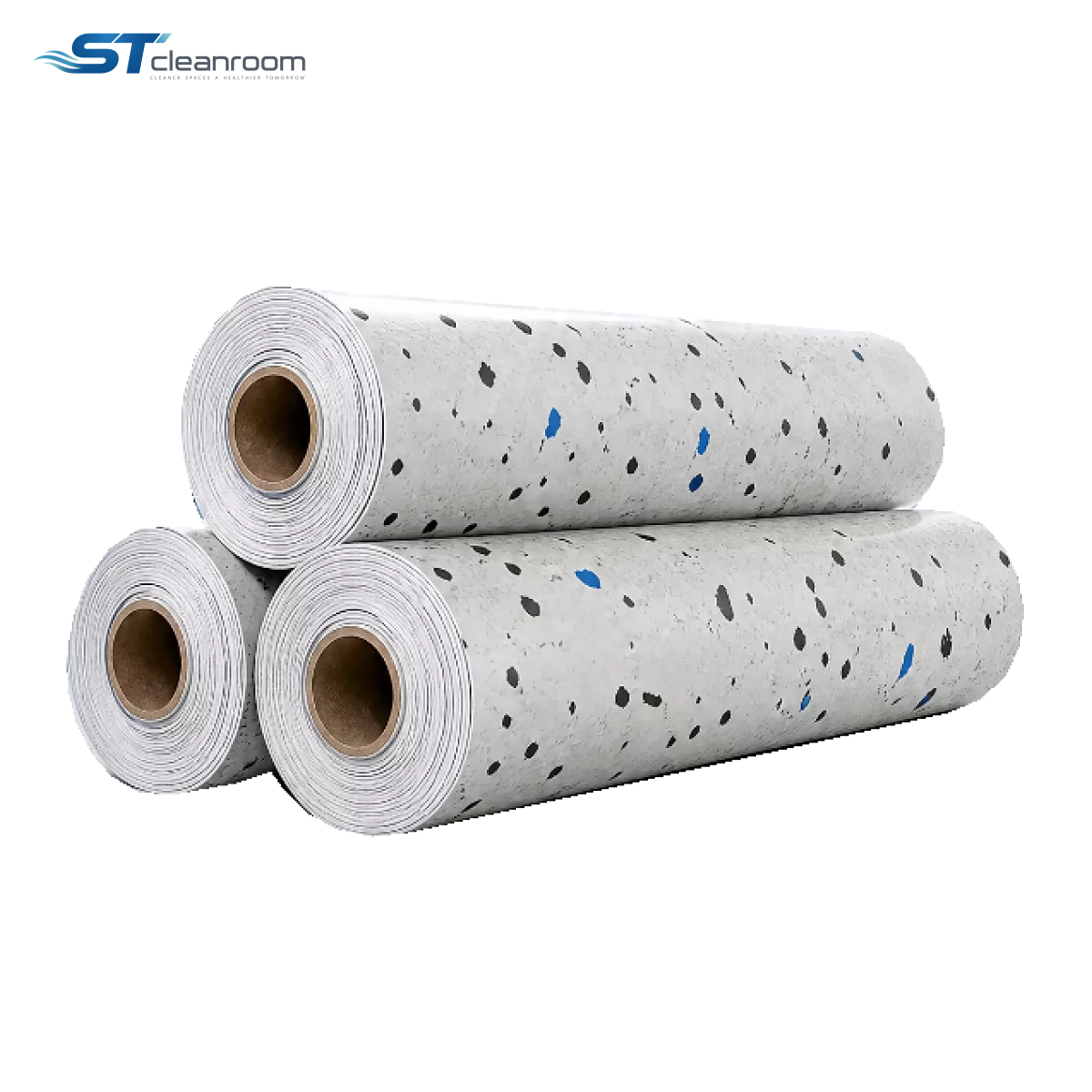

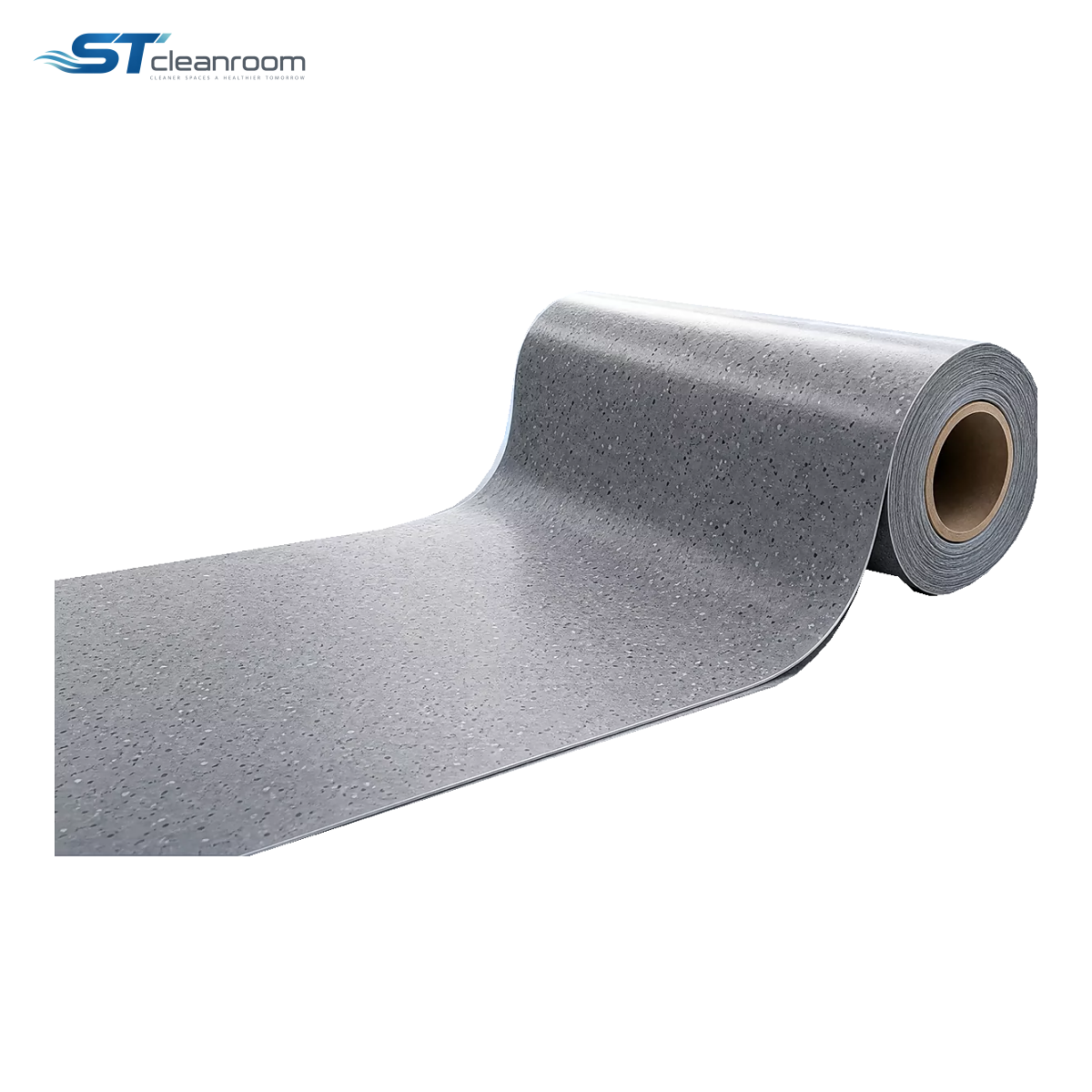

Product view
Cleanroom Flooring Systems
Anti-Static PVC Sheet Flooring
Product specifications
| Brand | ST |
|---|---|
| Product type | Anti-static PVC sheet flooring in rolls |
| Material | PVC |
| Thickness | 2 mm |
| Width | 2 m |
| Length range | 2–20 m |
| Full-roll size listed for references 110, 280 and 510 | 2 × 20 m |
| Surface resistance | 10⁴–10⁹ Ω |
| Static dissipation time | 0.7 s |
| Wear resistance grade | T |
| Flame-retardant grade | B1 |
| Mechanical feature | Wear- and compression-resistant |
| Ordering unit | 1 m² |
| Optional copper grounding foil | 100 m/roll |
| Optional welding rod | 100 m/roll |
| Optional conductive adhesive | 5 kg/pail |
| Optional anti-static floor wax | 3.8 L/pail |
| Customisation | Cut lengths and project installation requirements |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Anti-Static PVC Sheet Flooring helps limit static build-up in electronics production and other static-sensitive work areas. Installed with compatible conductive adhesive and grounding connections, it provides a route for charge to leave the floor, supporting the site's protection of sensitive components and equipment.
The wide roll format reduces the number of joints across open production areas. Welded seams join adjacent sheets into a surface that is easier to clean, while the wear- and compression-resistant material supports everyday use in workshops, laboratories and computer rooms.
MODELS AND DIMENSIONS
Flooring finish references
| Finish reference | Thickness (mm) | Supply format |
|---|---|---|
| 110 | 2 | 2 × 20 m roll |
| 280 | 2 | 2 × 20 m roll |
| 510 | 2 | 2 × 20 m roll |
| 512 | 2 | 2 m-wide sheet; cut to length |
| 513 | 2 | 2 m-wide sheet; cut to length |
| 613 | 2 | 2 m-wide sheet; cut to length |
| 621 | 2 | 2 m-wide sheet; cut to length |
| 650 | 2 | 2 m-wide sheet; cut to length |
Samples and project-specific cut lengths are available. Installation and maintenance materials are optional.
STATIC CONTROL AND SHEET COVERAGE
Fewer joints across larger working areas
Wide sheets and welded seams
Rolls cover long runs with fewer cross joints; welding closes the seams between adjacent sheets for routine cleaning.
A durable working surface
Wear and compression resistance support regular workshop use, with the speckled finish available in several references.
APPLICATION ENVIRONMENTS
Flooring for static-sensitive rooms and production lines
Electronics, SMT and PCB production
Cover assembly and handling areas where personnel movement can generate static around sensitive electronic components.
Laboratories
Provide a static-control floor around sensitive instruments and test work, with seam details suited to the room's cleaning needs.
Computer and equipment rooms
Support static management during equipment operation and maintenance as part of the room's grounding and personnel-control system.
LAYOUT, INSTALLATION AND CARE
Plan the floor as one connected system
Roll layout and joints
Plan sheet direction and cut lengths around the room geometry, then detail welded joints and edges for the cleaning routine.
Base and grounding
Bond to a smooth, dry, sound base using a compatible adhesive system, connect the copper foil to the designed earth points and test the completed installation.
Static-control maintenance
Use floor-care products compatible with the installed system; choose anti-static wax where the maintenance plan calls for it.
