Conductive structure through the tile
The internal network provides a route for charge to leave the floor through the installed grounding system, helping limit static accumulation around sensitive equipment.
PRODUCT GALLERYST

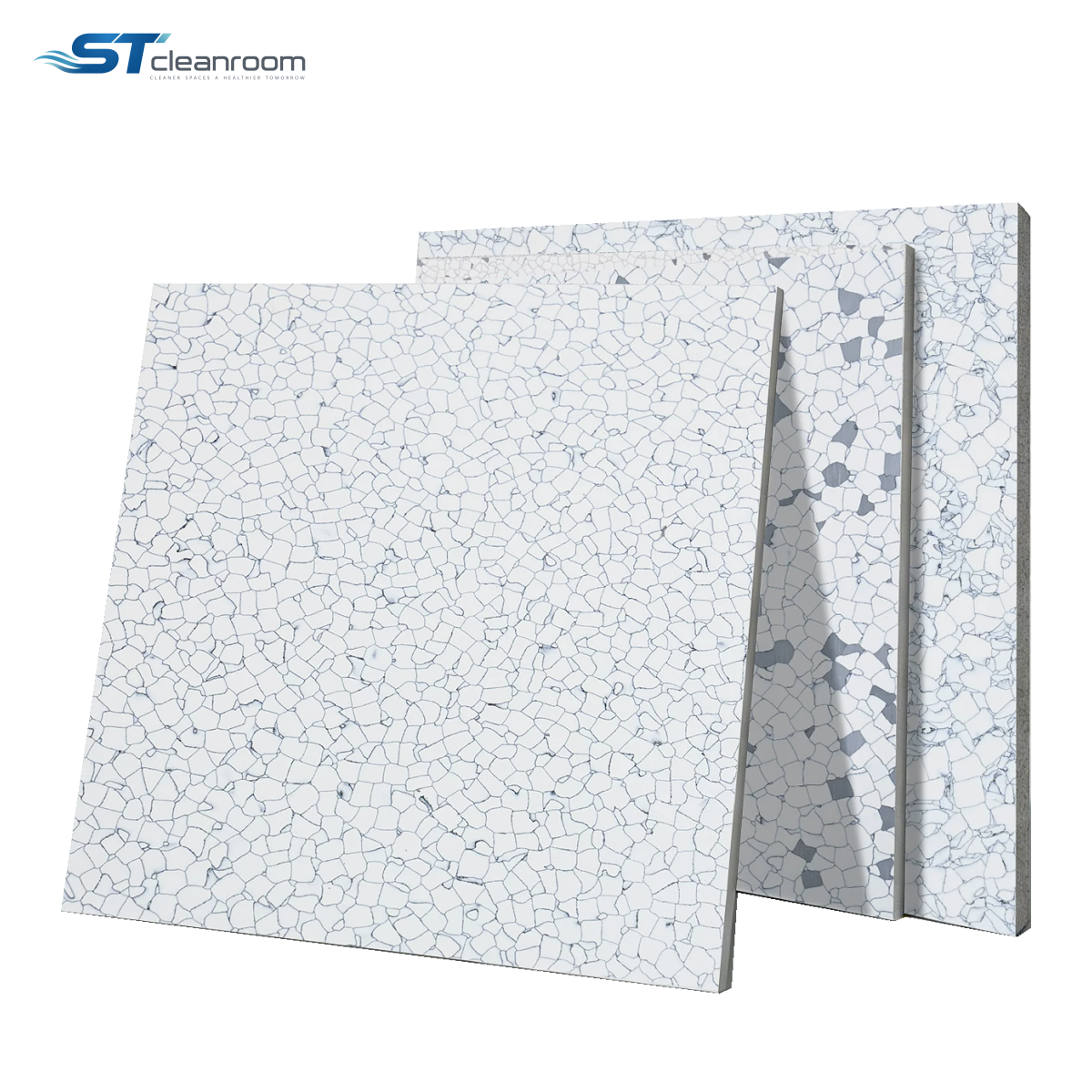

Product view
Cleanroom Flooring Systems
Anti-Static PVC Floor Tiles
Product specifications
| Brand | ST |
|---|---|
| Product type | Anti-static PVC floor tiles |
| Base material | PVC resin |
| Construction | Homogeneous, through-body tiles |
| Static-control feature | Permanent anti-static performance; conductive network between PVC particles |
| Standard tile size | 600 × 600 mm |
| Thickness options | 2 mm and 3 mm |
| Custom size option | 900 × 900 × 3 mm |
| Appearance | Marble-effect, speckled and colour finishes |
| Mechanical properties | Wear-resistant and compression-resistant |
| Fire behaviour | Flame-retardant |
| Water resistance | Waterproof tile material |
| Formaldehyde | Formaldehyde-free |
| Maintenance | Easy to wash and maintain |
| Product documentation | Test report |
| Customisation | Tile dimensions and project requirements |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Anti-Static PVC Floor Tiles provides a permanent anti-static floor finish for rooms where static can affect electronic components and sensitive equipment. A conductive network between the PVC particles carries charge through the material and, with a compatible conductive adhesive and grounding system, provides a path to earth.
The through-body construction combines a marble-effect or speckled finish with resistance to wear and compression. Its washable surface supports routine cleaning in equipment rooms and clean production areas, while the tile format makes it practical to lay out the floor and replace individual damaged sections.
MODELS AND DIMENSIONS
Tile sizes and finishes
| Colour reference / option | Finish | Dimensions (mm) |
|---|---|---|
| 801 | White-base marble pattern | 600 × 600 × 2 |
| 802 | White-grey speckles | 600 × 600 × 2 |
| 803 | Black-white-grey pattern | 600 × 600 × 2 |
| 804 | Green | 600 × 600 × 2 |
| 805 | Black speckles | 600 × 600 × 2 |
| 806 | Grey | 600 × 600 × 2 |
| 811 | Black-and-white pattern | 600 × 600 × 2 |
| 812 | Grass green | 600 × 600 × 2 |
| Custom | Black-and-white pattern | 600 × 600 × 3 |
| Custom | Mottled pattern | 900 × 900 × 3 |
Other project dimensions can be customised.
STATIC CONTROL AND DAILY USE
A working surface with static control built in
Wear and compression resistance
The homogeneous material supports regular use while retaining its patterned appearance through the tile body.
Straightforward cleaning and repairs
The water-resistant surface is easy to wash, and individual tiles can be replaced when a local area is damaged.
APPLICATION ENVIRONMENTS
Floors for static-sensitive work areas
Electronics and clean production
Use in integrated-circuit clean workshops, electronic instrument assembly and precision-instrument manufacturing where the floor forms part of the site's static-control and cleaning plan.
Computer and telecommunications rooms
Provide a static-control surface in computer rooms, microwave and mobile communications rooms, telephone equipment production workshops and telephone switching rooms.
Broadcasting and dispatch control rooms
Support static-sensitive equipment areas in television and radio control rooms, power dispatch centres, metro dispatch rooms and transport control centres.
Hospitals and clinical rooms
Use in designated static-control areas, including operating theatres, anaesthesia rooms and oxygen rooms, with the installed floor selected for the room's electrical, fire and hygiene requirements.
Petrochemical production workshops
Consider as part of a project-specific static-control floor system selected for the process, chemical exposure and hazardous-area requirements.
INSTALLATION AND CARE
Install the tiles as a complete static-control floor
Adhesive and grounding
Use a compatible conductive adhesive and the designed grounding connections; verify the completed floor and its intended footwear system against the site's static-control requirements.
Subfloor and joints
Lay on a smooth, sound, dry and level base, with joint and edge details suited to the room's cleaning needs.
Cleaning routine
Use maintenance products compatible with the static-control floor so cleaning does not leave an insulating surface film.
