Open / Stop / Close control
This switch lets the operator stop blade travel at the desired position; pair the switch with the corresponding 24 V or 220 V actuator.
PRODUCT / TECHNICAL DATA Cleanroom Ductwork & AccessoriesSpecifications / Configurations / Procurement
PRODUCT GALLERYST
Product view
Cleanroom Ductwork & Accessories
Motorized Air Damper
Product specifications
| Brand | ST |
|---|---|
| Product type | Motorized ventilation air damper |
| Functions | Opening, closing and multi-angle airflow adjustment |

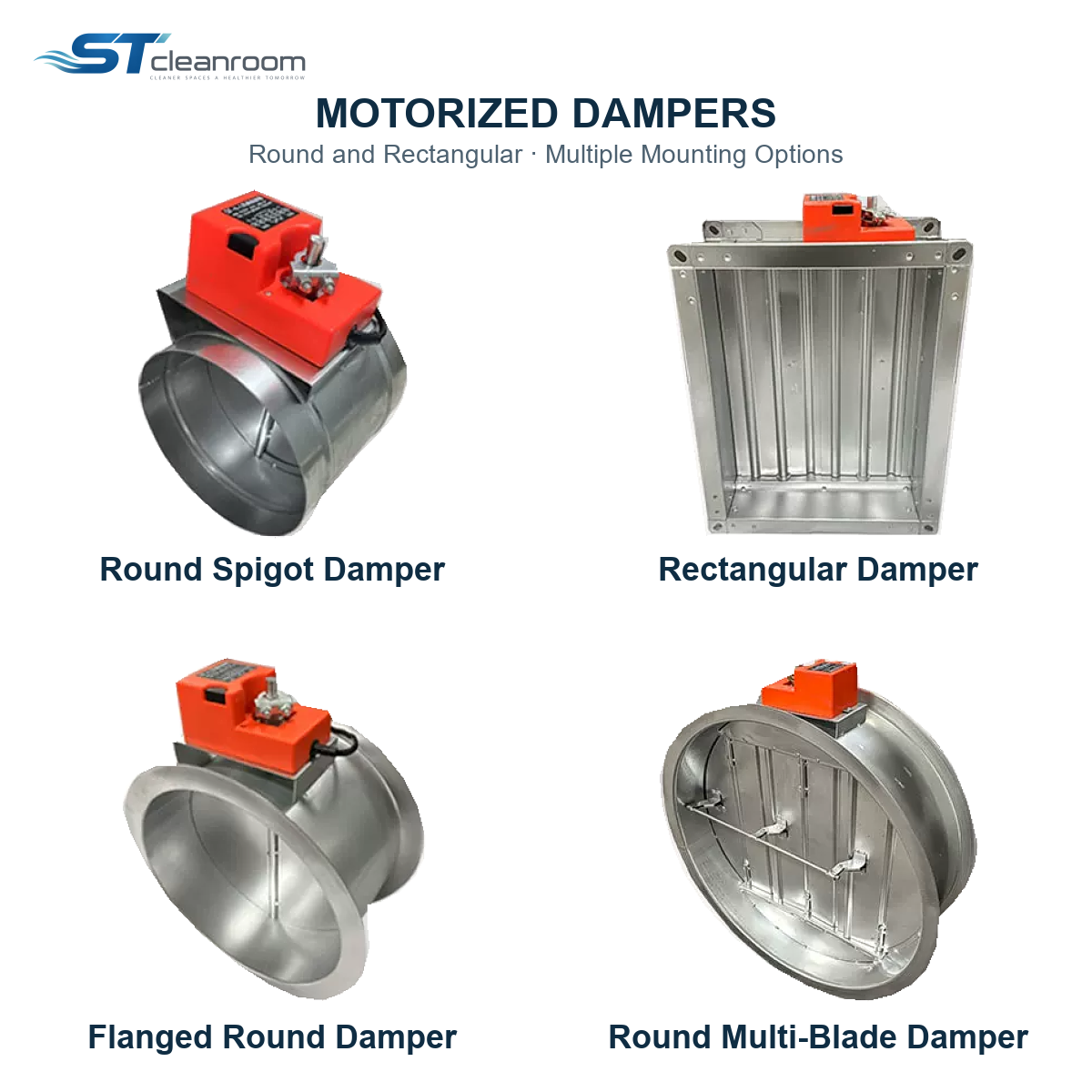

| Construction options | Round spigot, rectangular, flanged round and round multi-blade |
| Material options | Galvanized steel; 201, 304 or 316 stainless steel |
| Product features | Heat resistance, corrosion resistance, low-noise operation and durable construction |
| Standard control switch | Open / Stop / Close; 220 V and 24 V compatible |
| Five-position control switch | Five opening settings; standard 220 V configuration |
| Switch installation | Both control-switch types fit an 86-type wall box |
| Custom actuator options | High-torque, analogue-control and explosion-proof configurations |
| Customisation | Size, material, connection arrangement and actuator/control configuration |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Motorized Air Damper adjusts a ventilation duct opening from an accessible control switch. Its actuator moves the blade assembly, allowing staff to change a concealed or elevated branch without reaching the damper itself.
Round spigot, flanged round, rectangular and round multi-blade constructions connect to different duct layouts. Material and actuator choices allow the operating arrangement to follow the installation.
MODELS AND DIMENSIONS
Available size options
| Option group | Duct opening (mm) |
|---|---|
| Standard round | Ø100 |
| Standard round | Ø150 |
| Standard round | Ø200 |
| Standard round | Ø250 |
| Standard round | Ø300 |
| Standard round | Ø350 |
| Standard round | Ø400 |
| Standard round | Ø500 |
| Standard round | Ø600 |
| Standard square | 200 × 200 |
| Standard square | 300 × 300 |
| Standard square | 400 × 400 |
| Standard square | 500 × 500 |
| 304 stainless steel round | Ø100 |
| 304 stainless steel round | Ø150 |
| 304 stainless steel round | Ø200 |
| 304 stainless steel round | Ø250 |
| 304 stainless steel round | Ø300 |
| 304 stainless steel round | Ø400 |
| 304 stainless steel round | Ø500 |
| 304 stainless steel round | Ø600 |
Other dimensions and configurations can be customised.
MODEL DIFFERENCES
Which configuration fits the task
Five-position control
Five selectable openings provide repeatable settings in the standard 220 V arrangement, useful where staff return to the same operating positions.
AIRFLOW CONTROL
Match the damper and control to the duct
Motorized blade adjustment
Open, close or change the blade angle from the control switch to adjust the air passage.
Four construction options
Round, rectangular, flanged and multi-blade designs accommodate different duct shapes and connections.
Material choices
Galvanized steel and three stainless steel grades provide options for the installation's material requirements.
Simple wall-mounted controls
Choose Open / Stop / Close operation or five opening settings, using a switch fitted to an 86-type wall box.
Custom actuator configurations
High-torque, analogue-control and explosion-proof versions are available as custom configurations.
APPLICATION ENVIRONMENTS
For ventilation routes that need adjustable airflow
Building ventilation ducts
Adjust airflow through supply or extract duct branches serving different areas.
Workshop ventilation
Open, close or adjust a ventilation route from a conveniently located control switch.
Ceiling and service-space ducts
Operate a damper installed above the ceiling or in a service space without reaching its blade mechanism.
CONTROL OPTIONS
Choose the matching damper and switch configuration
Standard control switch
Open / Stop / Close controls support 220 V and 24 V installations with the matching damper actuator.
Five-position control switch
Select among five opening settings; the standard configuration is 220 V.
Duct and actuator configuration
Match the duct opening, connection and material, then select standard or custom actuator operation.
