Clear floors and worktops
Permanent wall mounting keeps the unit outside floor-cleaning routes and leaves working surfaces available for production.
PRODUCT / TECHNICAL DATA Cleanroom Disinfection SuppliesSpecifications / Configurations / Procurement
PRODUCT GALLERYST

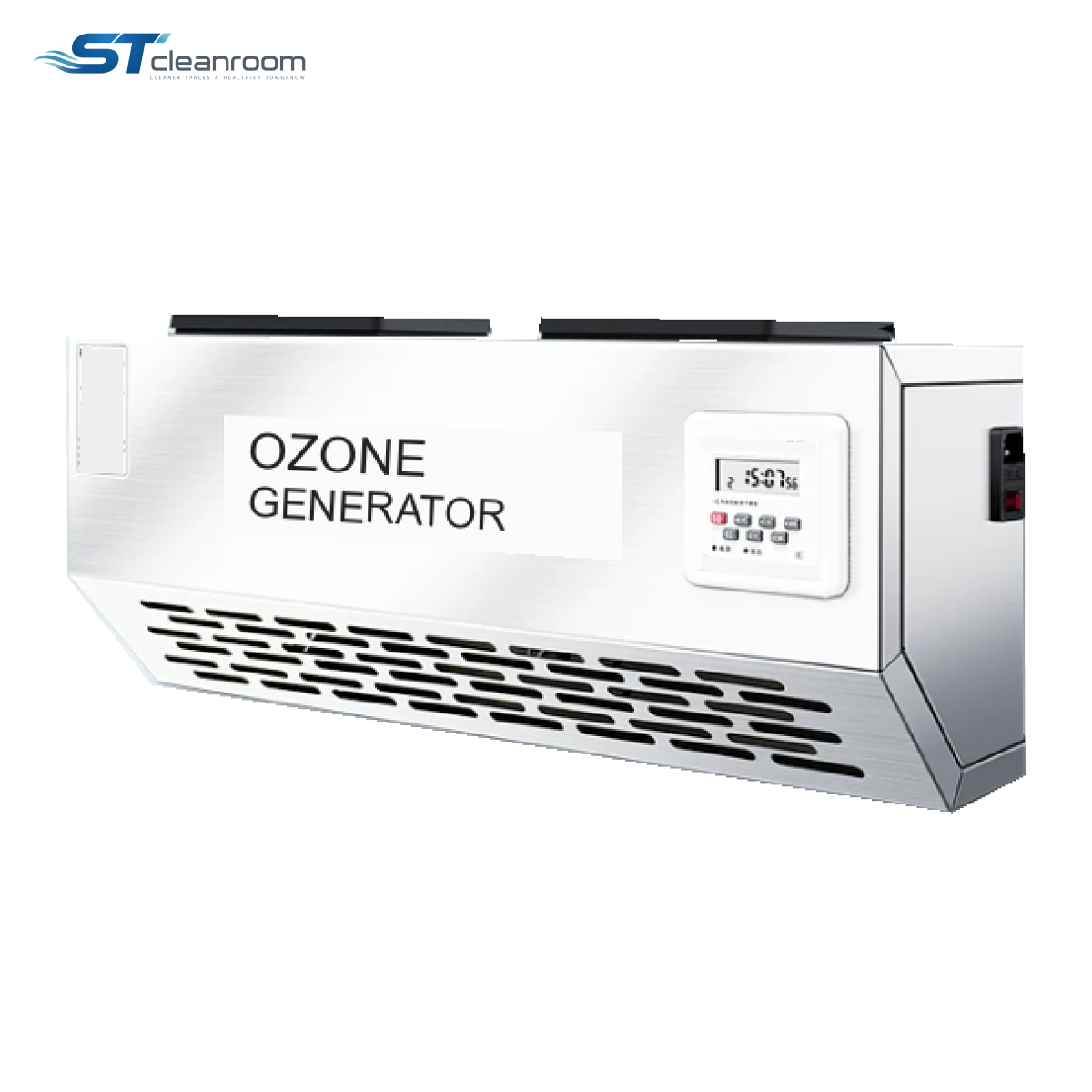

Product view
Cleanroom Disinfection Supplies
Wall-Mounted Ozone Generator
Product specifications
| Brand | ST |
|---|---|
| Installation | Wall-mounted |
| Housing material | 304 stainless steel |
| Control | Programmable time switch with automatic start/stop and daily cycles |
| Ozone output range | 5–50 g/h |
| Working area range | 50–500 m² |
| Main functions | Germicidal treatment, disinfection and odour removal |
| Additional process-treatment targets | Ammonia and formaldehyde, with process-specific treatment design |
| Microorganism targets | E. coli, mould, spores, Listeria and Salmonella |
| Disinfection rate | 99.9% and above |
| Gas distribution | 360-degree ozone diffusion |
| Housing properties | Rust, corrosion, acid, alkali, impact and heat resistance |
| Surface protection | Five-layer protective process: brushed anti-soiling finish; acid/alkali rust protection; high-temperature sealing; high-temperature degreasing; polished stainless steel |
| Reference cabinet length | 600 mm |
| Reference cabinet height | 250 mm |
| Reference cabinet upper depth | 185 mm |
| Reference cabinet lower depth | 115 mm |
| Customisation | Output and installation configuration |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Wall-Mounted Ozone Generator produces ozone for planned disinfection and odour treatment in vacant food-processing and packaging rooms. The gas moves with room air and oxidises susceptible microorganisms and odour compounds, adding a treatment step after cleaning without spraying liquid disinfectant.
A programmable time switch repeats scheduled start and stop periods, reducing the need for daily manual switching. Wall mounting keeps floors and work surfaces clear, while the 304 stainless steel housing provides a durable, cleanable enclosure for production environments.
MODELS AND DIMENSIONS
Ozone output options
| Ozone output (g/h) | Control |
|---|---|
| 5 | Automatic daily start/stop |
| 10 | Automatic daily start/stop |
| 15 | Automatic daily start/stop |
| 20 | Automatic daily start/stop |
| 30 | Automatic daily start/stop |
| 40 | Automatic daily start/stop |
| 50 | Automatic daily start/stop |
Match output to room volume, air movement and the required contact time; establish the cycle using measured ozone concentration in the treatment area.
FIXED ROOM TREATMENT
Keep treatment ready for the next production break
Repeatable daily scheduling
The timer starts and stops generation at programmed times, helping fit treatment into regular room closures.
Gas contact around exposed areas
Ozone spreads with circulating air into accessible gaps; arrange the room for distribution and set contact time for the target organisms.
Durable stainless steel housing
The protective finish resists corrosion and soiling, helping the cabinet withstand routine use and remain easy to clean.
APPLICATION ENVIRONMENTS
Food-facility rooms that can be vacated for treatment
Food-processing workshops
Schedule environmental disinfection after cleaning and between production runs to address microbial contamination and residual odours.
Packaging rooms
Include an ozone cycle in the room's mould-control procedure during downtime, alongside cleaning and moisture control.
Food storage rooms
Consider fixed room treatment during planned closures where stored materials, packaging and fittings are compatible with ozone exposure.
INSTALLATION AND CYCLE PLANNING
Position the unit for circulation and service access
Wall position
Use a suitable supporting wall, leave the grilles unobstructed and keep the timer and side power switch accessible for servicing.
Room and process conditions
Check room height, air exchange, contents and target organisms when sizing the unit; ammonia or formaldehyde treatment needs a separately designed process for the actual contaminant load.
OPERATING CONDITIONS
Run scheduled cycles only in an isolated, vacant area
During generation
Keep people, animals and plants out, and prevent ozone reaching occupied adjoining rooms. Ozone can injure the lungs and damage sensitive materials.
Before the next shift
Stop generation, ventilate or remove residual ozone, and measure the concentration before reopening; a completed timer cycle or absence of smell does not establish safe entry.
