Narrow printer rolls
The listed 240–350 mm paper widths fit different compact cleaning interfaces and must retain their paired core lengths.
PRODUCT GALLERYST

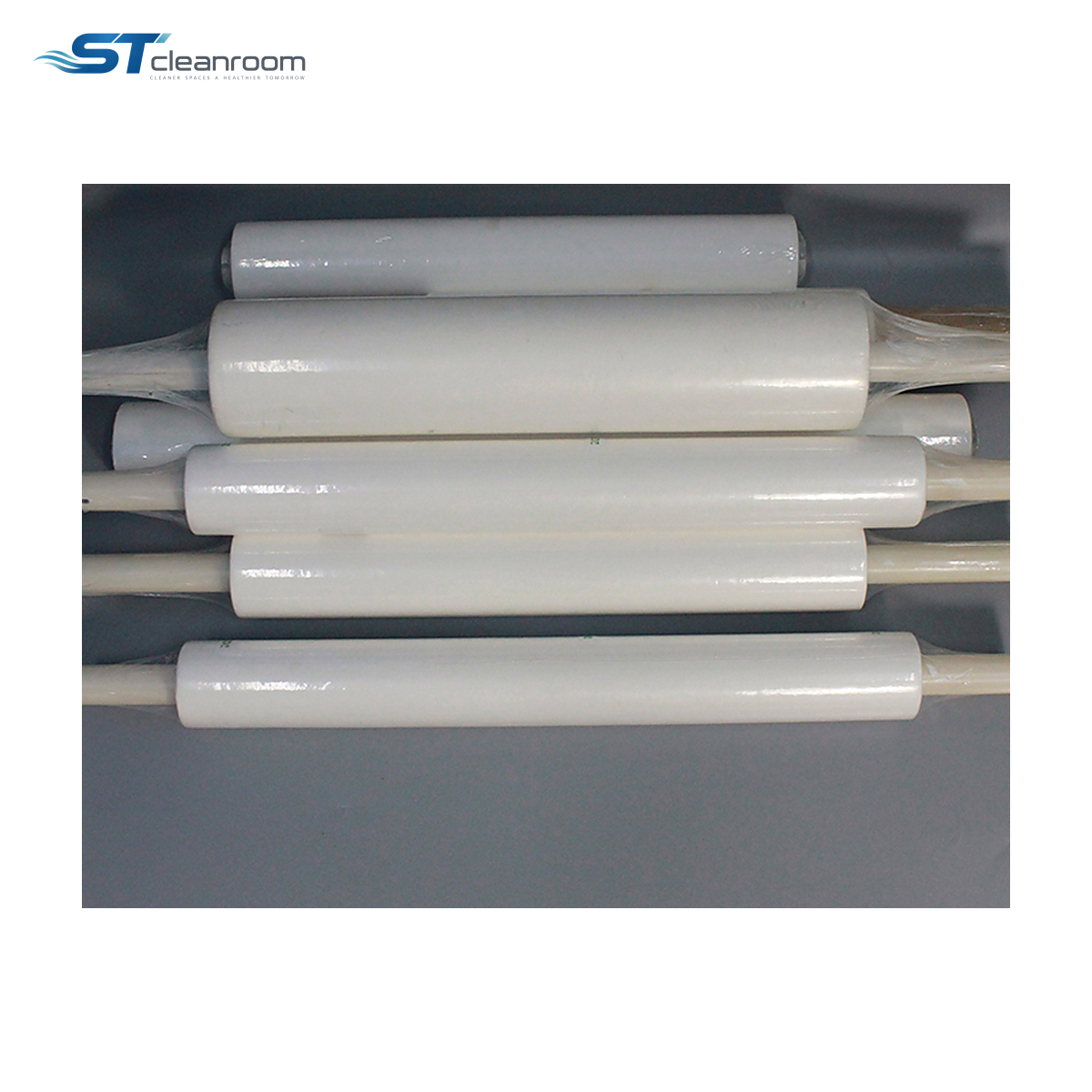

Product view
Cleanroom Consumables
SMT Stencil Cleaning Paper
Product specifications
| Brand | ST |
|---|---|
| Product type | SMT Stencil Cleaning Paper |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
SMT Stencil Cleaning Paper feeds beneath a solder-paste stencil to collect excess paste, adhesive and cleaning liquid. A roll matched to the printer keeps the cleaning web aligned with the stencil so the underside can be wiped between printing cycles.
MODELS AND DIMENSIONS
Formats and specifications
| Core diameter × length | Paper width × length | Winding |
|---|---|---|
| Ø20 × 530 mm | 300 mm × 10 m | Reverse winding |
| Ø20 × 530 mm | 300 mm × 10 m | Face winding |
| Ø20 × 530 mm | 240 mm × 10 m | |
| Ø20 × 530 mm | 350 mm × 10 m | |
| Ø19.5 × 455 mm | 300 mm × 10 m | |
| Ø19.5 × 455 mm | 300 mm × 8 m | Face winding |
| Ø19.5 × 455 mm | 300 mm × 8 m | Reverse winding |
| Ø40 × 1520 mm | 1440 mm × 100 m | |
| Ø40 × 930 mm | 800 mm × 100 m | |
| Ø40 × 846 mm | 705 mm × 150 m | |
| Ø40 × 846 mm | 705 mm × 100 m | |
| Ø46.7 × 1600 mm | 1440 mm × 100 m | |
| Ø20 × 370 mm | 240 mm × 18 m | |
| Ø47 × 1610 mm | 1510 mm × 150 m | |
| Ø20 × 376 mm | 280 mm × 10 m |
MODEL DIFFERENCES
Which configuration fits the task
Wide webs
The 705–1510 mm formats cover substantially broader machinery; the wider web does not imply the same holder dimensions.
Roll length
The listed lengths affect replacement frequency and spool size, while winding direction remains an independent compatibility detail.
APPLICATIONS
Where it is used
SMT solder-paste printing
Clean the stencil underside using the printer’s configured wet or dry cleaning cycle.
Printing-line changeovers
Remove remaining paste from the cleaning contact area when changing the production setup.
FEATURES AND BENEFITS
How it helps
Printer-matched roll
Core dimensions, paper width and winding direction determine whether the roll seats and feeds correctly.
Wet-cleaning pickup
The nonwoven web collects cleaning liquid and loosened printing residue.
Fresh material feed
Advancing the roll presents a clean section to the stencil instead of returning loaded material to the same contact area.
SELECTION GUIDANCE
Choosing the configuration
Core and web are separate dimensions
Match the core diameter and length as well as the narrower paper width.
Winding direction
Select the stated face or reverse winding required by the machine’s feed path.
