0.8 m width
The narrowest roll suits shallower work surfaces.
PRODUCT GALLERYST

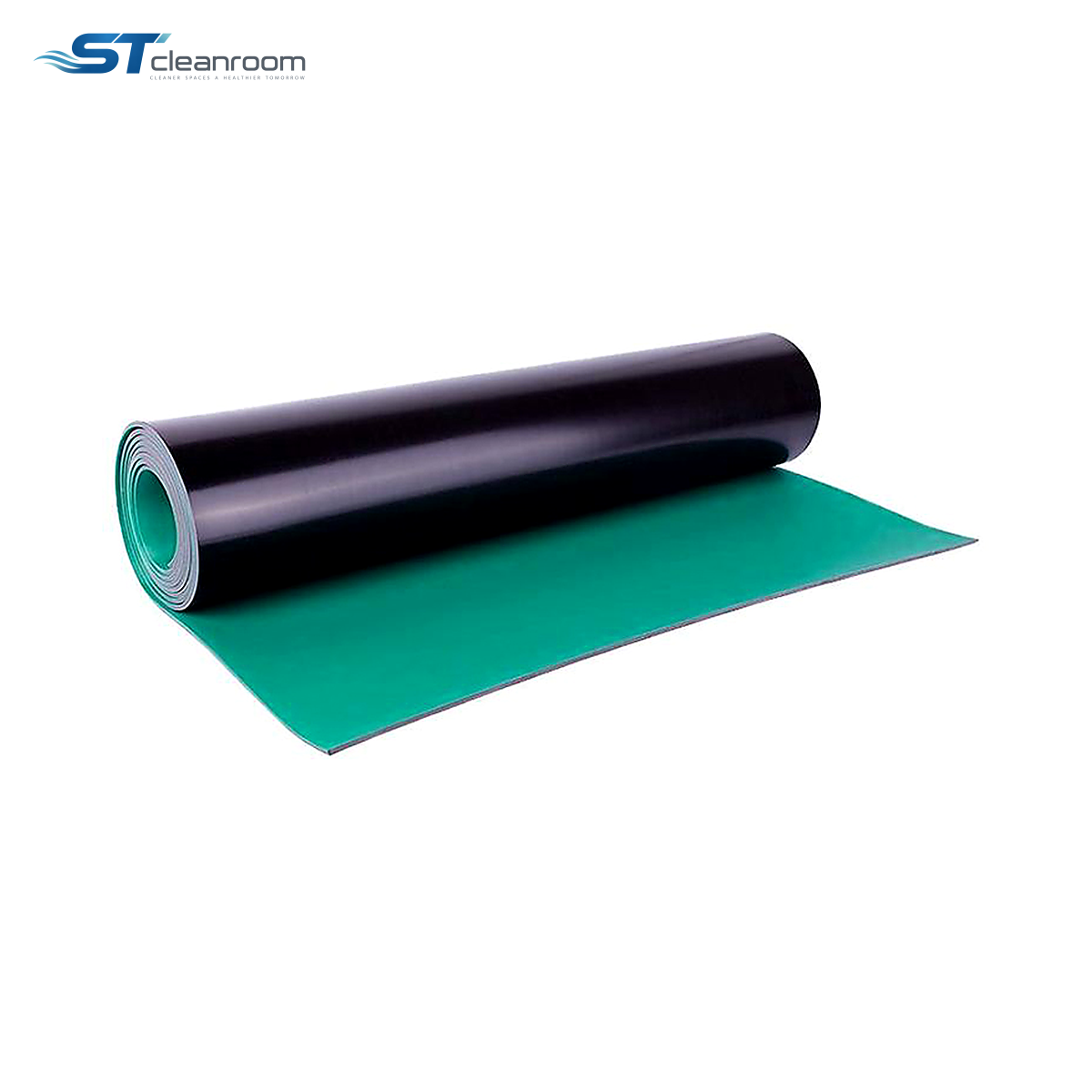

Product view
Cleanroom Consumables
ESD Workbench Mat
Product specifications
| Brand | ST |
|---|---|
| Product type | ESD Workbench Mat |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
ESD Workbench Mat gives electronics work a static-dissipative contact surface connected to the workstation grounding system. Its working layer and conductive underside form a two-layer mat that can be cut from a roll to cover the required bench area.
MODELS AND DIMENSIONS
Formats and specifications
| Property | Value |
|---|---|
| Dissipative layer surface resistance | ≤10⁷ |
| Dissipative layer triboelectric voltage | ≤30 V |
| Conductive layer surface resistance | ≤10⁵ |
| Conductive layer triboelectric voltage | ≤20 V |
| Static decay, 5000 V to 500 V | ≤0.4 s |
| Volume resistance | ≤10⁷ |
| Roll dimensions | 0.8 m × 10 m × 2 mm |
| Roll dimensions | 1.0 m × 10 m × 2 mm |
| Roll dimensions | 1.2 m × 10 m × 2 mm |
MODEL DIFFERENCES
Which configuration fits the task
1.0 m width
The middle width covers a broader bench area.
1.2 m width
The widest roll accommodates deeper work surfaces; all listed rolls retain the 10 m length and 2 mm thickness.
APPLICATIONS
Where it is used
Electronics assembly benches
Place sensitive parts on a grounded working surface during manual assembly.
Inspection and repair
Provide a controlled contact area for boards and components.
FEATURES AND BENEFITS
How it helps
Dissipative working face
The top surface manages charge at the work contact area.
Conductive underside
The base forms the conductive layer of the mat construction.
Cut-to-bench rolls
Three widths allow the surface to be fitted to different bench depths.
SELECTION GUIDANCE
Choosing the configuration
Grounding connection
Connect the mat using the workstation’s specified common grounding arrangement.
