Microfiber, 180 g/m²
The heavier microfiber version brings a denser contact cloth to fine-residue pickup.
PRODUCT GALLERYST

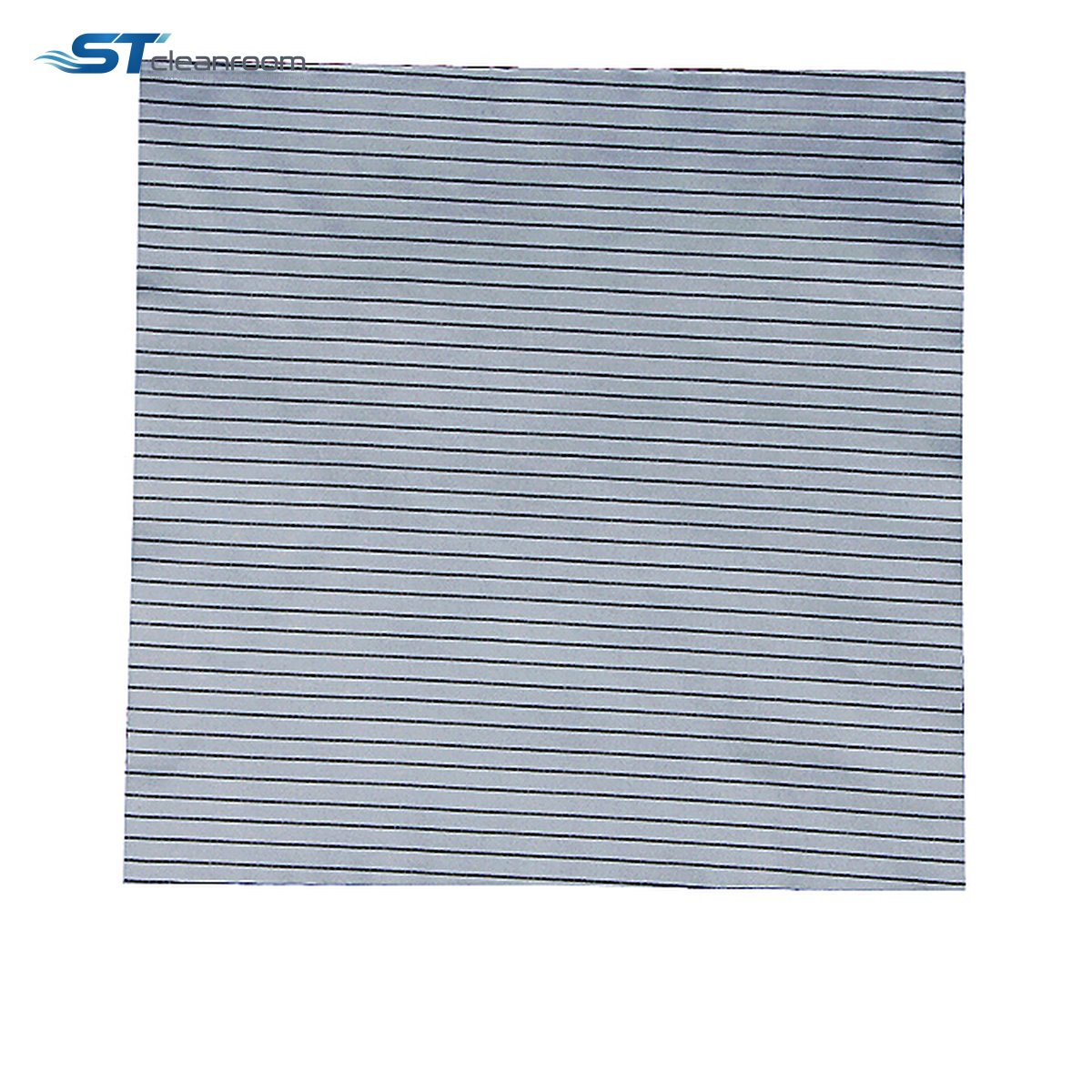

Product view
Cleanroom Consumables
ESD Cleanroom Wipes
Product specifications
| Brand | ST |
|---|---|
| Surface resistance | 10⁵–10¹¹ Ω |
| Static decay | Less than 1.5 s |
| Triboelectric voltage | Can be configured below 100 V |
| Cleanroom environment | Class 100 to Class 100,000 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
ESD Cleanroom Wipes combine wiping fibres with conductive yarn for dry cleaning around static-sensitive parts. The conductive structure addresses charge generated by contact and separation while the cloth removes surface contamination from equipment and components.
MODELS AND DIMENSIONS
Available models and supplied specifications
| Product type | Model | Specification | Packaging |
|---|---|---|---|
| Microfiber ESD wipe | ST-CS363-01 | 180g/m², 9 × 9inch | 100 pcs/pack |
| Polyester ESD wipe | ST-CS363-02 | 120g/m², 9 × 9inch | 100 pcs/pack |
Other sizes and packing formats can be customized for the application.
MODEL DIFFERENCES
Which configuration fits the task
Polyester, 120 g/m²
The lighter polyester format is less bulky for routine dry wiping around component features.
APPLICATIONS
Where it is used
Sensitive electronic components
Dry-wipe component surfaces while reducing charge accumulation during handling.
Disk-drive and magnetic-head areas
Use for general cleaning in static-controlled production spaces.
FEATURES AND BENEFITS
How it helps
Charge dissipation
Surface resistance is specified at 10⁵–10¹¹ Ω with decay below 1.5 seconds.
Adjustable conductive grid
Conductive-yarn spacing can be specified at 1, 1.5, 2 cm or another required interval.
Clean packed format
The wipe is cleaned and packed in a Class 10 environment.
SELECTION GUIDANCE
Choosing the configuration
Choose microfiber or polyester
ST-CS363-01 provides a heavier microfiber construction; ST-CS363-02 is a lighter polyester option.
Match ESD needs
Confirm resistance and grid spacing against the site's ESD control plan.
