ISO Class 4–8 production and research rooms
Enclose pharmaceutical, electronics, food-production and research spaces with framed modules and faces matched to process cleaning.
PRODUCT GALLERYST

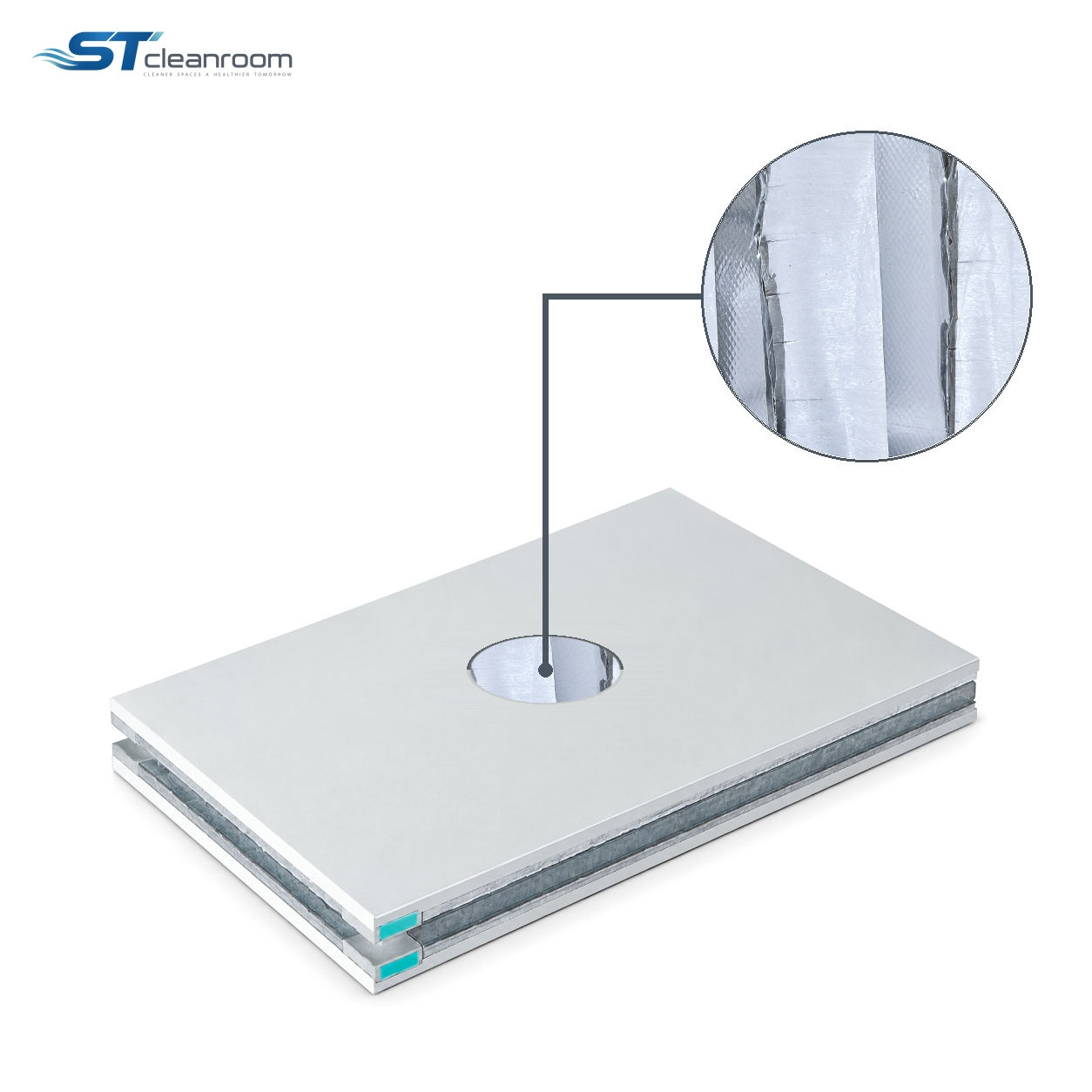

Product view
Cleanroom Wall Panels
Handmade Aluminum Honeycomb Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Paper honeycomb |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 125 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.
Handmade Aluminum Honeycomb Sandwich Panel uses a honeycomb core to support its metal faces within a framed wall or ceiling module. Perimeter framing closes the edges and gives each prefabricated module a defined connection to adjacent panels.
Use the modules for cleanroom partitions or supported ceiling infill. Planning doors, glazing, lights and filter openings alongside the panel schedule keeps the room's surface and equipment interfaces coordinated.
APPLICATION ENVIRONMENTS
Where the panel fits
Ceiling systems with integrated services
Arrange supported infill around lighting, filters and access points, providing separate support for equipment loads.
PRACTICAL BENEFITS
What the construction helps solve
Cellular support with less core mass
Honeycomb cells back the faces without the weight of a solid-filled section.
Closed and connected panel edges
Perimeter frames retain the core and provide interfaces to tracks, doors and adjoining modules.
Equipment positions included in the layout
Planning service openings early helps keep ceiling joints and equipment supports aligned.
CHOOSING THE ASSEMBLY
Selection
Ceiling use
Specify ceiling spans, supports, equipment loads and maintenance access.
Wall use
Match wall edges to doors, glazing and attached fixtures.
PRODUCT QUESTIONS
Common questions
Can maintenance staff walk on the panels?
Only with a ceiling assembly specifically designed and documented for walk-on use.
Can the same panel specification be used for walls and ceilings?
Both uses are possible, but each needs its own support, load and connection design.
